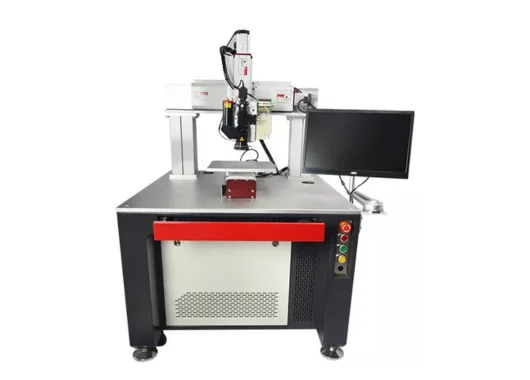

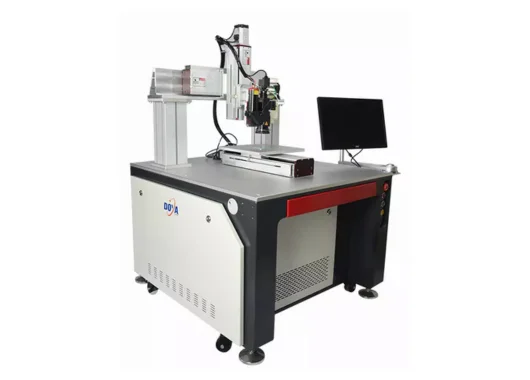

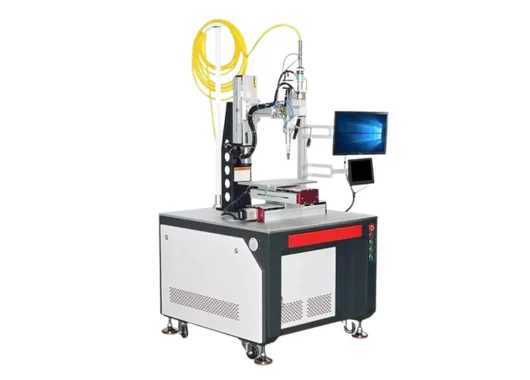

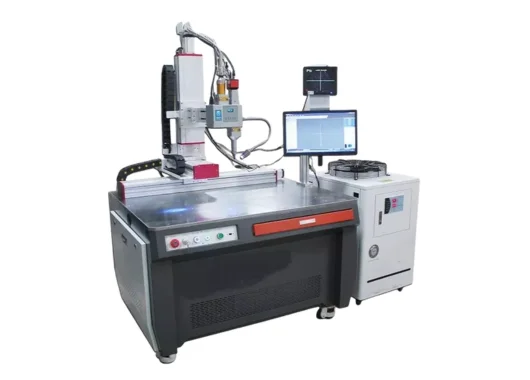

DOYA Automatic 3/4/5-Axis Platform Laser Welding Machine (DHWM)

DOYA Automatic 3/4/5-Axis Platform Laser Welding Machine (DHWM)

The DOYA Automatic Platform Laser Welding Machine is engineered for high-efficiency, automated laser welding in industrial manufacturing environments. Combining precision motion control, stable laser output, and flexible configuration options, it delivers exceptional performance for a wide range of welding tasks.

Advanced Automation & Precision

This industrial-grade machine adopts a Continuous Wave (CW) Fiber Laser with an integrated laser energy feedback system, ensuring stable, reliable, and repeatable welding performance. It is built to support demanding production lines where accuracy and consistency are critical.

Flexible Axis Configuration

• Includes a high-precision 3-axis electric platform (X, Y, Z) as standard.
• Optional expansion to 4-axis or 5-axis with additional rotary axes.
• Enables precise control of complex geometries and 3D welding paths.

This flexibility allows the machine to handle intricate parts and multi-angle welding with ease.

Quality Monitoring & Control

• Equipped with an HD CCD monitoring system for real-time visual feedback.
• Advanced control software ensures accurate positioning, auto-focus, and optimized welding paths.
• Guarantees highly consistent weld quality, even in high-volume production environments.

High Consistency for Mass Production

By integrating fixtures, rotary devices, and automated platform control, the system can rapidly weld large quantities of identical parts with exceptional consistency—significantly enhancing production throughput.

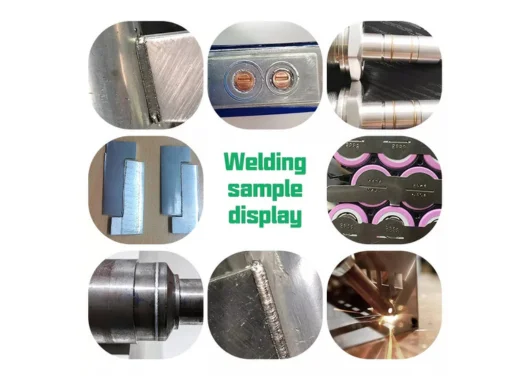

Versatile Welding Capabilities

The system supports a wide variety of weld shapes and paths, including:

• Weld points
• Straight lines
• Circles
• Squares
• Vertical (multi-level) tracks

Its versatile design makes it suitable for an extensive range of industrial applications.

Industry Applications

Ideal for welding products such as:

• Household & Consumer Items:
  Kettles, vacuum cups, stainless steel bowls, filters
• Electronic Components:
  Sensors, tungsten wire parts, high-power diodes/triodes, mobile phone batteries
• Automotive & Industrial:
  Door handles, molds, electric apparatus fittings, nozzles
• Metal Products & Artworks:
  Stainless steel goods, aluminium alloy laptop shells, golf heads, zinc alloy crafts

Customization & Premium Components

• Optional Laser Sources:
  Fiber Laser, YAG Laser, QCW high-speed splitter, Semiconductor Laser
• High-Quality Hardware:
  • Qilin BWT30 double swing motor welding head
  • Leadshine / Panasonic servo motors for precise motion control

These customizable options ensure optimal performance for specific materials, thicknesses, and production requirements.
