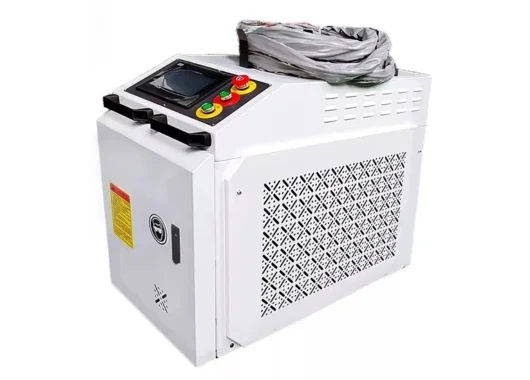

Doyalaser CW Laser Cleaning Machine

Doyalaser CW Laser Cleaning Machine

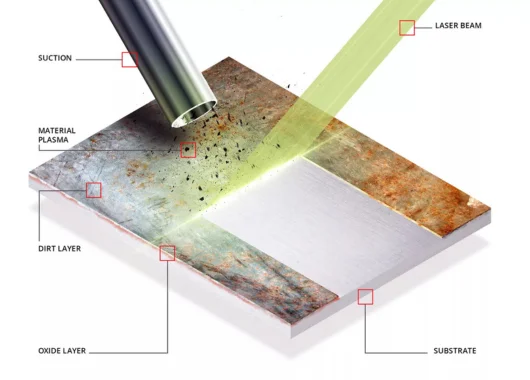

The DOYA CW Laser Cleaning Machine is a handheld, high-efficiency, continuous wave (CW) fiber laser system designed to fill the need for portable laser cleaning equipment. Using the latest generation fiber laser source, its advantages include simple operation and the capacity to clean metal rust, paint, and oxide layers from various metal materials like stainless steel, iron, and aluminium. It is available with power options ranging from 1000 to 3000W.
1000W
1500W
2000W
3000W
Category: Laser welding and Cutting
Brand: DOYA

Doyalaser CW Laser Cleaning Machine

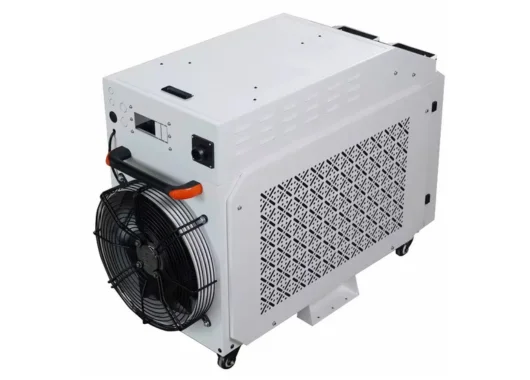

The CW Fiber Laser Cleaning Machine is a high-efficiency, non-contact industrial cleaning system engineered for portability and on-site use. Designed as a handheld unit, it offers powerful cleaning performance while remaining lightweight and easy to operate—ideal for large-scale and field applications.

Key Features:

● Lightweight Handheld Design

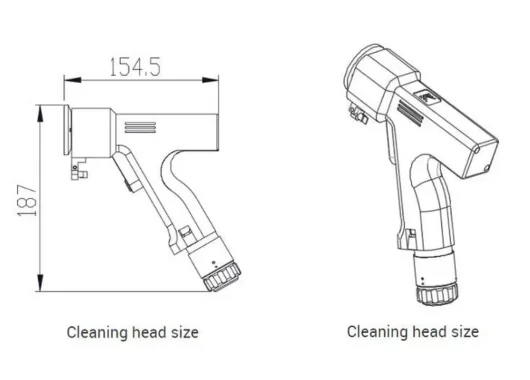

Built for mobility, the compact handheld laser gun enhances flexibility and makes it easy to access tight or elevated areas during cleaning tasks.

● High Cleaning Efficiency
Delivers strong, continuous-wave laser power that removes contaminants quickly and consistently across industrial environments.

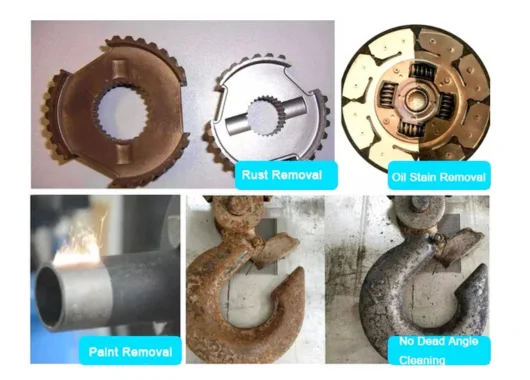

● Versatile Contaminant Removal
Effectively removes:

  • Rust
  • Paint
  • Oxide layers
  • Surface oil and residue

● Metal Material Compatibility
Suitable for various metal surfaces, including:

  • Thin stainless steel plates
  • Iron plates
  • Aluminum plates

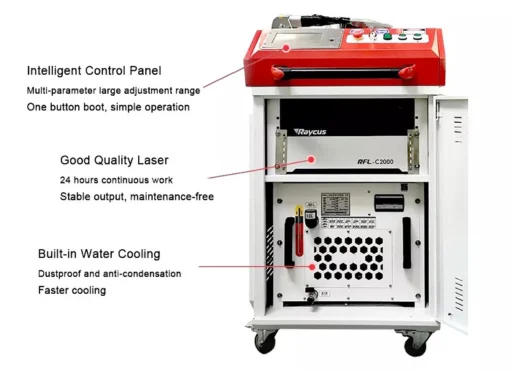

● Customizable Laser Source
Available with multiple fiber laser brands such as Raycus, Max, JPT, and Reci, allowing users to select performance based on application needs.

● Robust Cooling & Air System
Equipped with a water cooling system for long-duration operation and requires an air compressor to support high-performance cleaning.

● Flexible Fiber Length Options
Optical fiber length can be customized to 10 m, 15 m, or 20 m, providing extended reach for large or hard-to-access work areas.

Technical Specifications



Specification

DCM-1000

DCM-1500

DCM-2000

DCM-3000

ModelDCM-1000DCM-1500DCM-2000DCM-3000
Average Output Power1000 W1500 W2000 W3000 W
Power Consumption4500 W6000 W7500 W9000 W
Laser Wavelength1070 nm1070 nm1070 nm1070 nm
Working ModeContinuous or ModulatedContinuous or ModulatedContinuous or ModulatedContinuous or Modulated
Optical Fiber Length10 m (customizable)10 m (customizable)10 m (customizable)10 m (customizable)
Fiber Core Diameter50 µm50 µm50 µm50 µm
Power Adjustment Range10% – 100%10% – 100%10% – 100%10% – 100%
Suitable MaterialMetal, oil stains, oxide layer, etc.Metal, oil stains, oxide layer, etc.Metal, oil stains, oxide layer, etc.Metal, oil stains, oxide layer, etc.
Power Supply220 V ±10%, 380 V ±10%, 50/60 Hz AC220 V ±10%, 380 V ±10%, 50/60 Hz AC220 V ±10%, 380 V ±10%, 50/60 Hz AC220 V ±10%, 380 V ±10%, 50/60 Hz AC
Cooling TypeWater CoolingWater CoolingWater CoolingWater Cooling
Working Time24 hours24 hours24 hours24 hours
Working Temperature0°C – 40°C0°C – 40°C0°C – 40°C0°C – 40°C

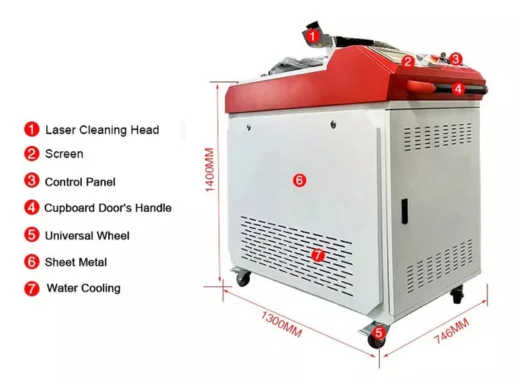

Machine Size1300 × 746 × 1400 mm1300 × 746 × 1400 mm1300 × 746 × 1400 mm1300 × 746 × 1400 mm
Machine Weight200 kg200 kg200 kg200 kg
