Doyalaser Online Mobile Anilox Laser Cleaning Machine

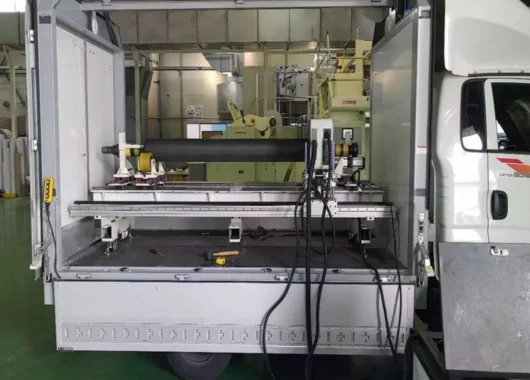

The DOYA Online Mobile Anilox Laser Cleaning System (ACLM Series) is a portable, high-efficiency cleaning solution specifically designed for large and heavy anilox rollers used in corrugated packaging paper printing. Its key feature is online cleaning, allowing the roller to be cleaned without time-consuming and laborious disassembly from the printing press. It can also be used in a service truck or static setup. It effectively removes all residues and dirt, restoring cell volume and surface tension to achieve consistent highest printing quality. It is the most environmental friendly method, requiring no water, chemicals, or granulates. The cleaning speed for large rollers can reach 2 meters per hour.
mobile
Category: Laser welding and Cutting
Brand: DOYA

DOYA Online Mobile Anilox Laser Cleaning Machine – Product Description

The DOYA Online Mobile Anilox Laser Cleaning Machine is an advanced, high-efficiency solution designed for professional deep cleaning of anilox rollers directly on-site or while still installed in the press. Engineered for corrugated printers and cleaning service providers, it eliminates the need for dismantling heavy rollers and delivers unmatched cleaning performance with zero chemical usage.

Key Features & Advantages

βœ” Online + Mobile Cleaning Flexibility

  • Designed for in-press (online) cleaning without removing the roller.
  • Fully mobile, allowing operators or service teams to clean multiple machines or customer installations easily.
  • Ideal for large and heavy anilox rollers, removing the challenges of manual disassembly.

βœ” Superior Cleaning Performance

  • Achieves the highest cleaning quality among all methods, thoroughly removing ink, coatings, and residues.
  • Restores the cell volume and surface tension to near-original condition, ensuring maximum ink transfer and consistent print results.
  • Extends the lifetime of anilox rollers with precise, non-abrasive laser cleaning.

βœ” Maintenance-Light and Fully Automated

  • Automated cleaning cycles require minimal operator involvement.
  • Reduces production downtime and labor requirements.
  • Cleaned rollers can return to production immediately after the cycle.

βœ” Environmentally Friendly

  • 100% chemical-free and water-free cleaning process.
  • No abrasives, blasting media, or solvents.
  • Produces no hazardous waste, making it the most eco-friendly cleaning method available.

βœ” Safe and Non-Destructive

  • Laser cleaning is non-contact, ensuring no damage to the anilox surface or cell walls.
  • Perfect for both narrow-web and wide-web printing environments.

Technical Specifications



Item

ACLM

ModelACLM
Time-consuming cleaning (1000 mm)15 minutes
Maximum length of roller (Static use)2500 mm
Maximum length of roller (Online cleaning)No limit
Diameter range of roller (Static use)100 mm βˆ’ 400 mm
Diameter range of roller (Online cleaning)No limit
Maximum weight of roller (Static use)400 kg
Maximum weight of roller (Online cleaning)No limit
Machine dimensions450 Γ— 720 Γ— 1000 mm
Machine weight80 kg
