DOYA 3000W-6000W CW Laser Cleaning Machi...

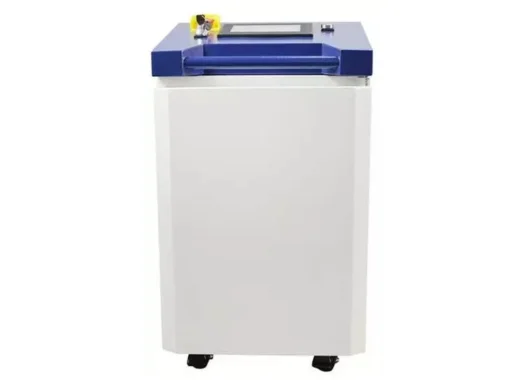

DOYA 3000W-6000W CW Laser Cleaning Machine

The DOYA 3000W-6000W CW Laser Cleaning Machine is a high-efficiency, handheld industrial solution using the latest generation CW fiber laser source. It is primarily designed for the fast and non-destructive removal of layers like rust, paint, oil stains, and oxide layers from metal surfaces, including stainless steel, iron, and aluminium. The handheld design and touch control system with pre-set cleaning schemes (Depth, Standard, Non-destructive) ensure simple operation and high efficiency for heavy-duty industrial cleaning applications. Power options include 3000W and 6000W (and others, see specifications).
1500W
2000W
3000W
6000W
Category: Laser welding and Cutting
Brand: DOYA

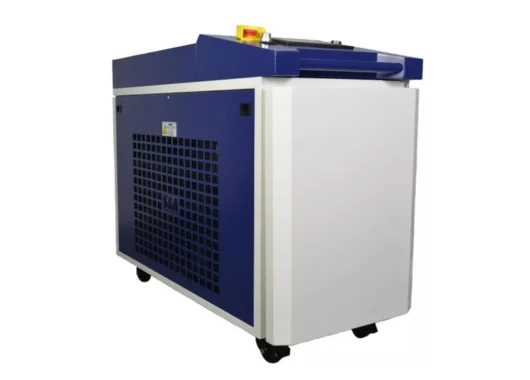

DOYA 3000W-6000W CW Laser Cleaning Machine

The DOYA CW Fiber Laser Cleaning Machine is a high-power, non-contact industrial cleaning system engineered for fast, efficient, and damage-free surface restoration. Designed for heavy-duty applications, it uses a Continuous Wave (CW) fiber laser to remove rust, paint, and oxide layers with exceptional precision.

Technology and Features:

● High-Power CW Fiber Laser
Equipped with a continuous-wave fiber laser source, the machine delivers strong, stable cleaning performance—filling a crucial gap in the industry for portable yet powerful laser cleaning systems.

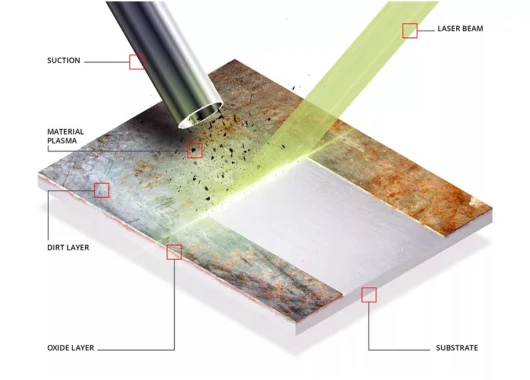

● Non-Destructive Cleaning Principle
Surface contaminants absorb the laser energy and instantly evaporate, crack, or sublimate—leaving the base metal untouched and undamaged.

● Intelligent Touch Control System
Features a user-friendly multilingual touchscreen with selectable cleaning modes:

  • Depth Cleaning
  • Standard Cleaning
  • Non-Destructive Cleaning

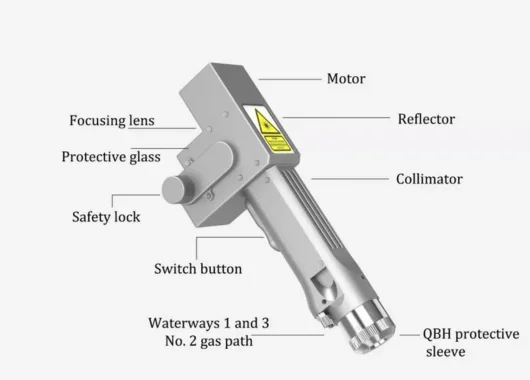

● Flexible Handheld Cleaning Gun
Available with Single or Dual-Axis Galvo cleaning guns for precise, easy handling. The gun includes a drawer-type protective and focus mirror, allowing quick replacement during maintenance.

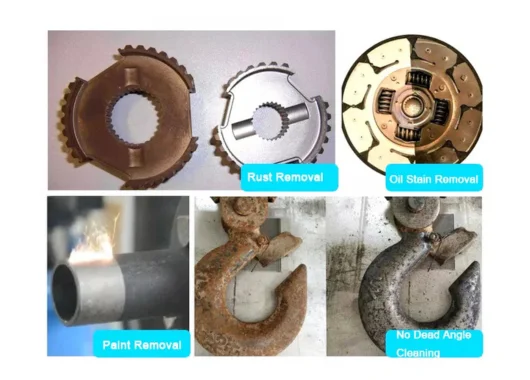

● Wide Industrial Application
Ideal for removing rust, paint, and oxides from:

  • Stainless steel
  • Carbon steel / iron
  • Aluminium and alloys

● Built for Continuous Operation
A robust water-cooling system enables 24/7 industrial use without performance loss.

● Customizable Laser Sources
Supports multiple reputable laser source brands: Raycus, Max, JPT, Reci, offering flexibility in performance and budget.

Technical Specification

The technical specifications for the high-power models, as well as the related lower-power models, are detailed below (Note: 3000W and 6000W are the advertised range, but the specifications provided also include 1000W, 1500W, and 2000W models).

Specification

DCM-1000

DCM-1500

DCM-2000

DCM-3000

Average Output Power1000 W1500 W2000 W3000 W
Laser Wavelength1070 nm1070 nm1070 nm1070 nm
Working ModeContinuous or modulatedContinuous or modulatedContinuous or modulatedContinuous or modulated
Optical Fiber Length10 m (customizable)10 m (customizable)10 m (customizable)10 m (customizable)
Fiber Core Diameter50 µm50 µm50 µm50 µm
Power Adjustment Range10% – 100%10% – 100%10% – 100%10% – 100%
Suitable MaterialMetal, oil stains, oxide layer, etc.Metal, oil stains, oxide layer, etc.Metal, oil stains, oxide layer, etc.Metal, oil stains, oxide layer, etc.
Power Consumption4500 W6000 W7500 W9000 W
Power Supply220 V ±10%, 380 V ±10%, 50/60 Hz AC220 V ±10%, 380 V ±10%, 50/60 Hz AC220 V ±10%, 380 V ±10%, 50/60 Hz AC220 V ±10%, 380 V ±10%, 50/60 Hz AC
Cooling TypeWater CoolingWater CoolingWater CoolingWater Cooling
Working Time24 hours24 hours24 hours24 hours
Working Temperature0°C – 40°C0°C – 40°C0°C – 40°C0°C – 40°C
Machine Size1300 × 746 × 1400 mm1300 × 746 × 1400 mm1300 × 746 × 1400 mm1300 × 746 × 1400 mm
Machine Weight200 kg200 kg200 kg200 kg
