Doyalaser CW Laser Cleaning Machine (150...

Doyalaser CW Laser Cleaning Machine (1500W-6000W)

The DOYA CW Laser Cleaning Machine is a handheld, high-power industrial system that uses the latest generation Continuous Wave (CW) fiber laser sources to perform non-contact surface treatment. It is specifically designed for the removal of thick or highly adherent layers of rust, oil stains, oxide layers, paint, or coatings from metal materials. Its advantages include simple operation, environmental friendliness, and non-damaging treatment to the base material. It is available in high power options: 1500W, 2000W, 3000W, and 6000W.
1500W
2000W
3000W
6000W
Category: Laser welding and Cutting
Brand: DOYA

Doyalaser CW Laser Cleaning Machine (1500W-6000W)

The CW Fiber Laser Cleaning Machine is a next-generation industrial surface treatment system designed for heavy-duty cleaning, rust removal, and large-scale maintenance applications. Using advanced continuous-wave fiber laser technology, it delivers powerful, efficient, and non-destructive cleaning across a wide range of metal surfaces.

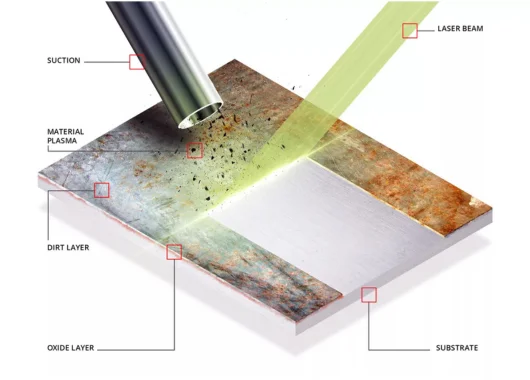

Cleaning Principle:

A high-energy laser beam is directed onto the workpiece surface. Contaminants such as rust, paint, coatings, and oil absorb the laser energy and instantly evaporate, crack, or sublimateβ€”removing the unwanted layer without physical contact or chemical solvents.

Key Features and Applications:

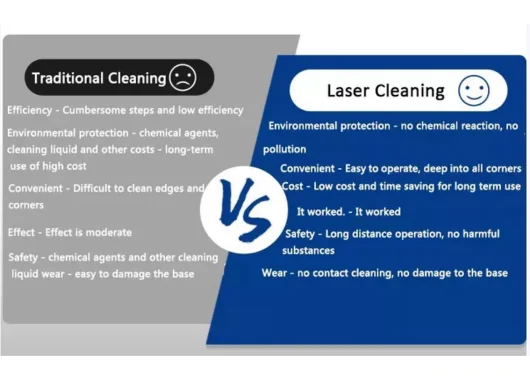

● Non-Damaging Surface Cleaning
Removes rust, paint, oxide layers, coatings, and oil stains without scratching, grinding, or affecting the base material.

● Wide Material Compatibility
Ideal for cleaning:

  • Stainless steel
  • Iron and carbon steel
  • Aluminum and alloys

● Industrial-Grade Performance
Engineered for large-scale cleaning tasks such as:

  • Outdoor steel structures
  • Storage tanks
  • Pipelines
  • Railway tracks
  • Ship and marine equipment

● 24/7 Continuous Operation
Equipped with a robust water cooling system and an integrated air compressor for stable, long-term industrial use.

● Easy, Flexible Operation

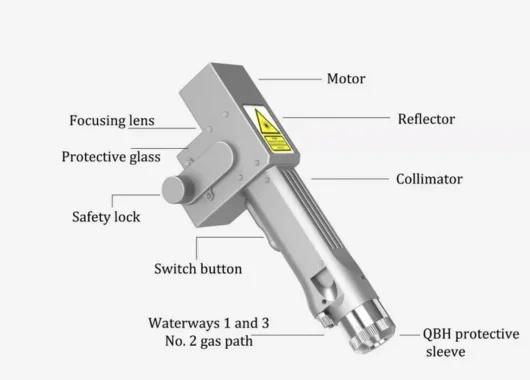

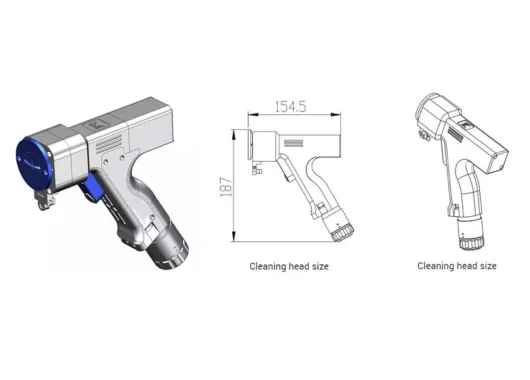

Features a handheld cleaning head for mobile operation, enabling simple, precise cleaning in workshops or on-site environments.

● Flexible Laser Source Options
Compatible with leading laser brands including Raycus, Max, JPT, and Reci, allowing customization based on budget and performance needs.

Technical Specification



SpecificationDCM-1500DCM-2000DCM-3000DCM-6000
Average Output Power1500 W2000 W3000 W6000 W
Laser Wavelength1064 nm1064 nm1064 nm1064 nm
Working ModeContinuous or modulatedContinuous or modulatedContinuous or modulatedContinuous or modulated
Optical Fiber Length10 m (customizable)10 m (customizable)10 m (customizable)20 m (customizable)
Scanning / Cleaning Width30–300 mm (optional)30–300 mm (optional)30–300 mm (optional)30–500 mm (optional)
Power Adjustment Range10% – 100%10% – 100%10% – 100%10% – 100%
Suitable MaterialRust, oil stains, oxide layers on metalsRust, oil stains, oxide layers on metalsRust, oil stains, oxide layers on metalsRust, oil stains, oxide layers on metals
Power Consumption6000 W7500 W9000 W14000 W
Power Supply220 V Β±10%, 50/60 Hz AC220 V Β±10%, 50/60 Hz AC380 V Β±10%, 50/60 Hz AC380 V Β±10%, 50/60 Hz AC
Cooling TypeWater CoolingWater CoolingWater CoolingWater Cooling
Working Time24 hours24 hours24 hours24 hours
Working Temperature0Β°C – 40Β°C0Β°C – 40Β°C0Β°C – 40Β°C0Β°C – 40Β°C
Machine Size81 Γ— 40 Γ— 76 cm108 Γ— 45 Γ— 81 cm111 Γ— 53 Γ— 91 cm142 Γ— 73 Γ— 112 cm
Machine Weight105 kg115 kg160 kg280 kg
