Doyalaser Backpack Portable Pulse Fiber Laser Cleaning Machine

The Backpack Portable Pulse Fiber Laser Cleaning Machine is a new generation high-tech product for surface cleaning, distinguished by its extremely easy installation and operation. It employs pulse laser technology to achieve dust-free, anhydrous cleaning with no chemical reagents or media, offering high surface cleanliness. The machine features auto-focus and is suitable for cleaning crank surfaces. Available in 50W and 100W power outputs.
50W
100W
Category: Laser welding and Cutting
Brand: DOYA

Doyalaser Backpack Portable Pulse Fiber Laser Cleaning Machine

The Doyalaser Backpack Portable Pulse Fiber Laser Cleaning Machine is a compact, lightweight industrial cleaning system designed for fast, precise, and environmentally friendly surface restoration.

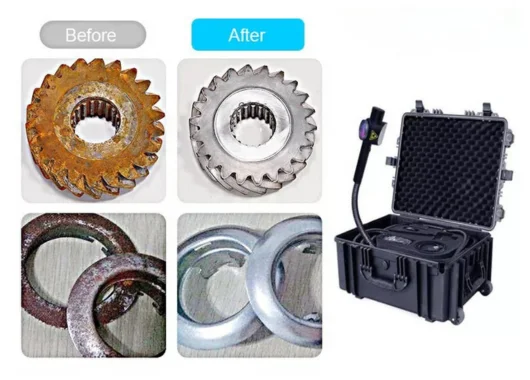

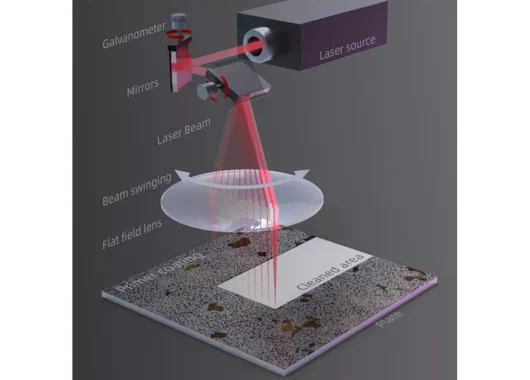

Using advanced pulse laser cleaning technology, the machine directs high-energy laser beams onto the material surface, where contaminants such as rust, paint, oil, or coatings instantly absorb the energy and evaporate or detach. This non-contact process achieves high-speed surface cleaning without damaging the base material.

Key Advantages & Features:

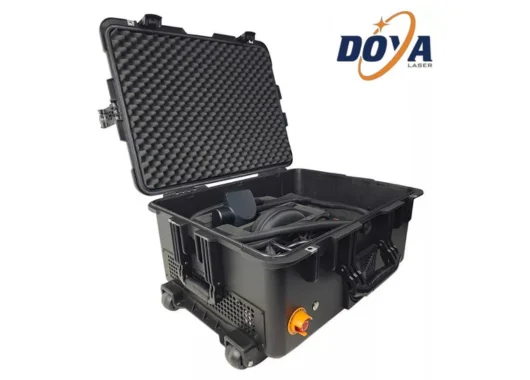

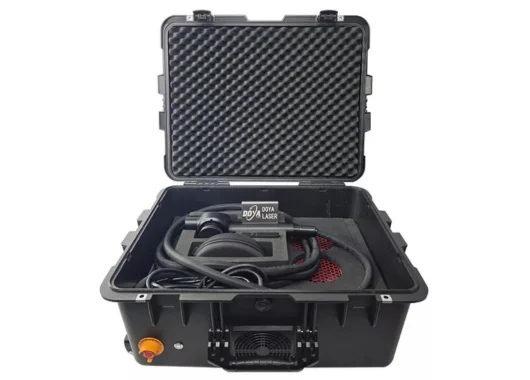

  • Backpack Portable Design:
    Ultra-light and easy to carry, ideal for flexible, on-site cleaning in hard-to-reach or large outdoor environments.

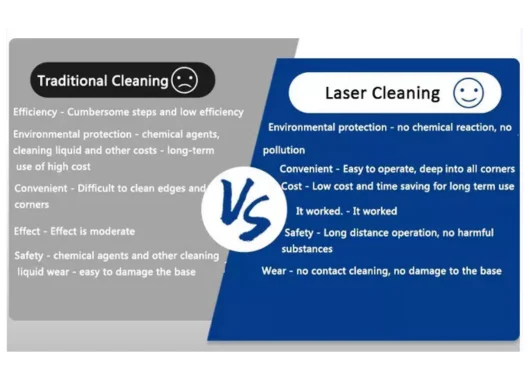

  • Eco-Friendly & Chemical-Free:
    The cleaning process is dust-free, water-free, and requires no solvents or consumables, making it safe and cost-efficient.
  • High Precision Cleaning:
    Supports auto-focusing and adapts to complex shapes, including curved or irregular components such as crank surfaces.

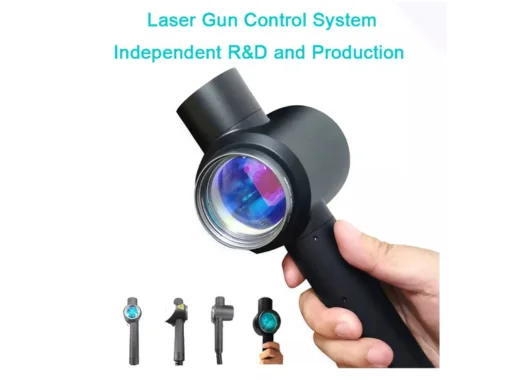

  • Lightweight Handheld Head:
    The ergonomic cleaning head weighs approximately 1 kg, enabling long-duration operation with minimal fatigue.
  • Versatile Applications:
    Effective for removing dirt, rust, oxide layers, paint, coatings, and industrial residues across multiple materials and industries.

Technical Specification



Category

Item

50W

100W

Optical ParametersAverage Output Powerβ‰₯50Wβ‰₯100W
 Laser Wavelength1064 nm1064 nm
 Pulse Width (ns)2–5002–500
 Frequency Regulation Range (KHz)1–40001–4000
 Power Adjustment10–100%10–100%
 Cooling TypeAir CoolingAir Cooling
Mechanical ParametersFiber Length (m)35
 Weight of Cleaning Head (kg)11
 Movable ModeHands pushing / automation combinedHands pushing / automation combined
 Scan Width (mm)10–11010–110
 Focal Length (mm)160 / 254 / 330 (optional)160 / 254 / 330 (optional)

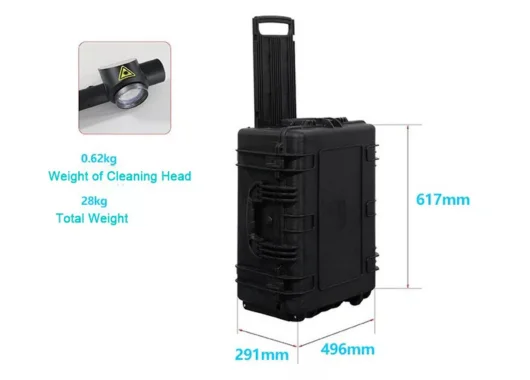

 Size (cm)64 Γ— 50.5 Γ— 2864 Γ— 50.5 Γ— 28
 Weight (kg)3033
Working ConditionVoltageSingle phase 230V / 110V Β±10%, 50/60 Hz ACSingle phase 230V / 110V Β±10%, 50/60 Hz AC
 Total Power200W500W
 Working Temperature0Β°C – 40Β°C0Β°C – 40Β°C
 Environment Humidity≀80%≀80%
