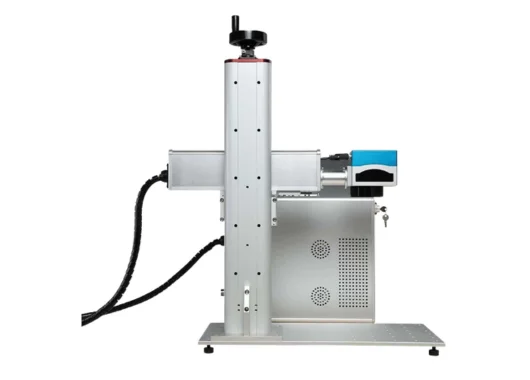

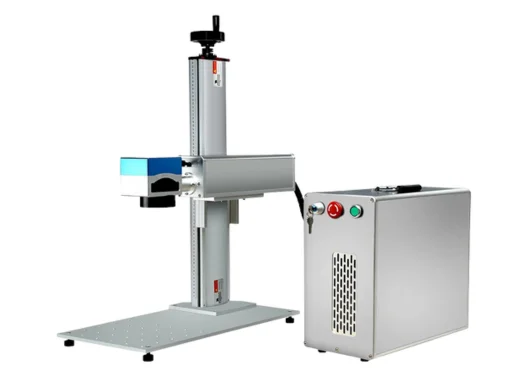

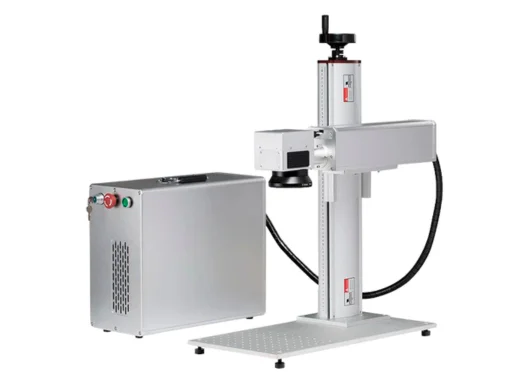

Fiber Laser Marking Machine

The MRJ-Laser Fiber Laser Marking Machine series utilizes an advanced fiber optic laser source (typically $1064\text{nm}$) to deliver high-speed, high-precision, and permanent marking on a wide variety of materials, specializing in metals and hard non-metals. Available in various formats, including portable, desktop, and handheld models, these systems are known for their long service life, zero maintenance, and cost-effectiveness.

Fiber Laser Marking Machine – Permanent Industrial Product Marking

The Fiber Laser Marking Machine is designed for permanent and precise marking on a wide range of industrial products and components. It is suitable for applications requiring durable identification that remains visible during product use.

This Laser Marking Machine UAE solution can be used for serial numbers, product codes, logos, barcodes and other identification information. Fiber laser technology is particularly suitable for many metal and industrial component marking applications.

Key Features of Fiber Laser Marking Machine

Permanent Laser Marking
Creates durable identification marks designed for long-term visibility.

Metal Marking
Suitable for marking many metal components and industrial products.

Serial Number Coding
Supports serial numbers, product codes and identification information.

Barcode & QR Code Marking
Suitable for traceability and product identification applications.

High-Precision Marking
Designed for detailed and accurate industrial marking.

Low-Contact Process
Laser marking does not require physical contact with the product.

Industrial Applications
Suitable for automotive, electronics, machinery and manufacturing industries.

Specification	Detail (Typical Range)
Laser Source	Fiber Laser
Wavelength	1064 nm
Laser Power	20 W / 30 W / 50 W (Standard); up to 200 W for deep engraving or cleaning
Maximum Marking Speed	≥ 7000 mm/s (Dependent on galvanometer performance)
Minimum Line Width	≤ 0.01 mm
Minimum Character Size	0.15 mm
Repeat Precision	± 0.002 mm
Marking Depth	0.01 mm – 1 mm (Power dependent)
Working Area	100 mm × 100 mm (Standard); up to 300 mm × 300 mm (Lens dependent)
Cooling Method	Air Cooling
Operating System	Microsoft Windows
Software	Dedicated laser marking software supporting PLT, DXF, AI, DST, BMP, JPG, and other file formats
Applicable Materials	All metals (stainless steel, carbon steel, aluminum, copper, gold, silver) and selected non-metals (hard plastics, ABS, PVC)

Specification

Detail (Typical Range)

Laser Source

Fiber Laser

Wavelength

1064 nm

Laser Power

20 W / 30 W / 50 W (Standard); up to 200 W for deep engraving or cleaning

Maximum Marking Speed

≥ 7000 mm/s (Dependent on galvanometer performance)

Minimum Line Width

≤ 0.01 mm

Minimum Character Size

0.15 mm

Repeat Precision

± 0.002 mm

Marking Depth

0.01 mm – 1 mm (Power dependent)

Working Area

100 mm × 100 mm (Standard); up to 300 mm × 300 mm (Lens dependent)

Cooling Method

Air Cooling

Operating System

Microsoft Windows

Software

Dedicated laser marking software supporting PLT, DXF, AI, DST, BMP, JPG, and other file formats

Applicable Materials

All metals (stainless steel, carbon steel, aluminum, copper, gold, silver) and selected non-metals (hard plastics, ABS, PVC)
