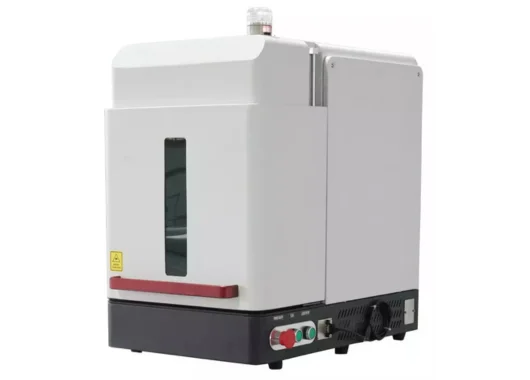

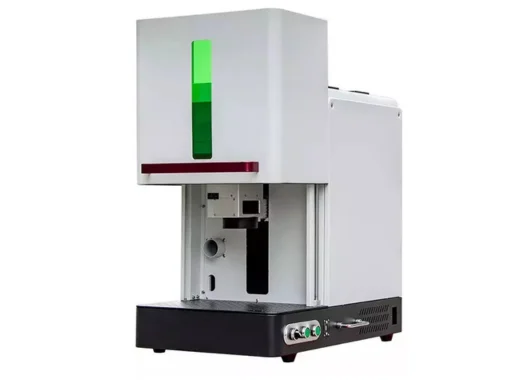

Doyalaser Enclosed Desktop Type Laser Marking Machine

The Doyalaser Enclosed Desktop Type Laser Marking Machine (Model: DMF) is a compact and portable Fiber Laser Marking system designed with a fully enclosed structure to provide effective safety protection for the operator. It utilizes advanced laser technology for high beam quality and reliability, achieving a maximum marking speed of 8000mm/s. It is environmental-friendly, low consumption, and suitable for high-accuracy marking on metal and some non-metallic materials.
20W
30W
50W
60W
100W
Category: Laser Marker
Brand: DOYA

Doyalaser Enclosed Desktop Type Laser Marking Machine

The DOYA Enclosed Desktop Type Laser Marking Machine is a high-performance industrial laser coder engineered for precision, safety, and ease of use. Its compact, fully enclosed structure ensures a safe marking environment while delivering professional-grade laser performance suitable for a wide range of applications.

Key Features and Safety:

  • Enhanced Safety:
    Designed with a fully enclosed desktop structure, the machine provides maximum operator protection while remaining compact and portableβ€”ideal for office, lab, and production environments.
  • Advanced Marking Technology:
    Equipped with cutting-edge fiber laser technology, it offers high beam quality, stable performance, and reliable long-term operation.
  • Versatile Application Range:

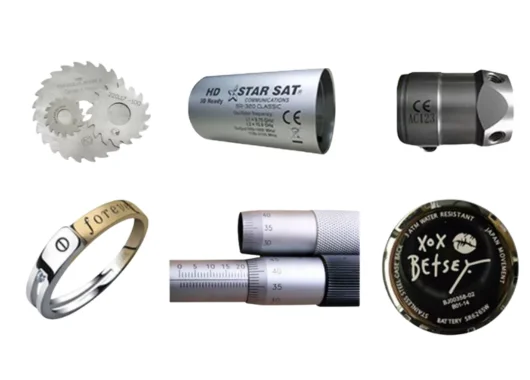

    Suitable for marking on metals and selected non-metal materials. Optional MOPA laser configurations enable high-contrast black marking on alumina and other specialized materials.
  • Efficient & Ready-to-Use:
    The system features low power consumption and a fully automatic workflow. All software and parameters are pre-configured before delivery, allowing the machine to be used immediately with no setup or calibration required.
  • High Speed & Precision:
    Engineered for applications requiring high marking depth, smoothness, and fine detailing. The machine achieves a maximum marking speed of 8000 mm/s, delivering fast, accurate, and consistent results.

Technical Specifications



Specification

Detail

Model / BrandDMF / DOYA
Laser TypeFiber
Laser Power Options20 W, 30 W, 50 W (60 W and 100 W optional)
Laser Wavelength1064 nm
Laser Beam Quality (MΒ²)1.5
Max. Marking Speed8000 mm/s
Marking Area150 mm Γ— 150 mm (optional)
Repeat Accuracy0.01 mm
Min. Linear Width0.017 mm
Marking Depth0.01 mm – 1 mm (material dependent)
Repeat Frequency20 KHz – 80 KHz
Power Consumption≀ 500 W
Cooling MethodAir Cooling
Power SupplyAC 110 V / 220 V, 50/60 Hz
Work EnvironmentClean, dust-free; 0Β°C – 40Β°C
