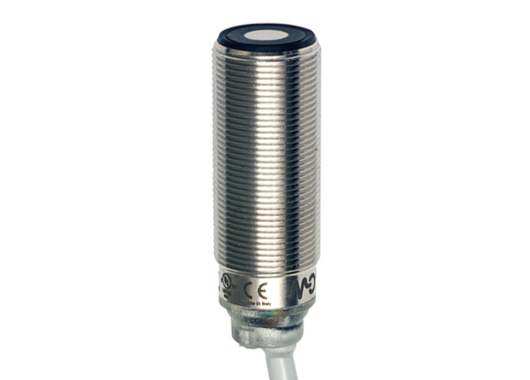

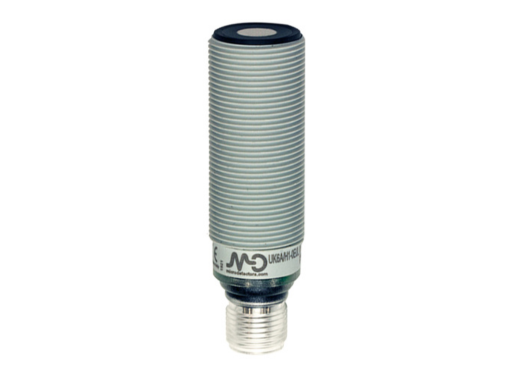

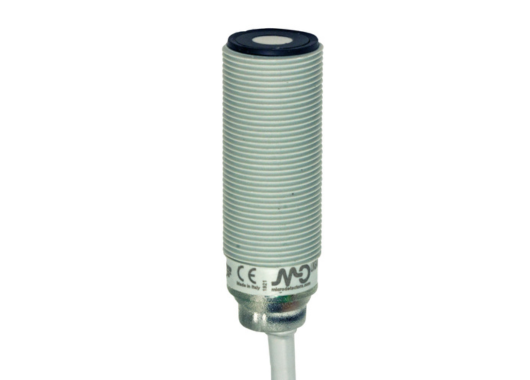

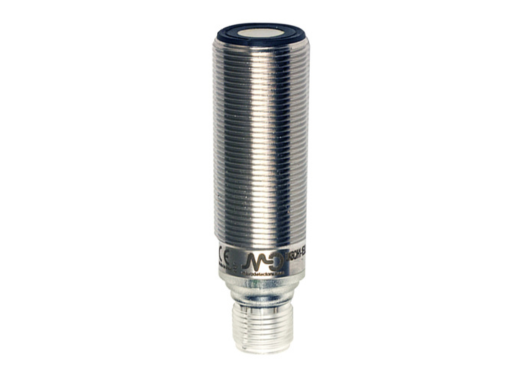

Ultrasonic Cylindrical sensors UK6 Series

Datasensing UK6 Series

The UK6 Series represents an advanced family of long-range ultrasonic sensors designed for applications requiring accurate distance measurement and consistent object detection across large working areas. Unlike optical sensors, the UK6 performs reliably on transparent, reflective, shiny, dark, or irregular surfaces, ensuring superior versatility in real-world industrial environments.

With powerful ultrasonic emission, robust electronics, and extended sensing capability, the UK6 Series is built for demanding automation tasks, including logistics, tank level control, pallet detection, packaging lines, and robotics.

Design & Functionality

• The UK6 features an industrial-grade cylindrical body, supporting easy installation in conveyor systems, machinery frames, and automated logistics equipment.
• Key design advantages include:
  • Extended ultrasonic sensing range, ideal for large-area detection and long-distance measurement.
  • High immunity to dust, steam, humidity, and ambient light, ensuring stable performance in harsh environments.
  • Teach-in programming, enabling quick calibration for various materials and distances.
  • Multiple output configurations, including digital and analog options for flexible integration.
  • Temperature-compensated electronics, providing consistent accuracy despite temperature changes.
  • High repeatability, even when detecting irregular or vibrating objects.
• The UK6 Series is designed for applications where long detection ranges and full surface independence are essential.

 Important: The UK6 Series is engineered for long-distance ultrasonic detection, maintaining accuracy even on transparent or reflective surfaces where optical sensors fail.

Total Crossed Beams

(Interpreted as complete ultrasonic coverage)

• The UK6 generates a strong and uniform ultrasonic cone that fully covers the detection area.
• This ensures reliable detection across the entire sensing field, regardless of object shape or material.

Beam Pitch Options

(Interpreted as sensor variants with different beam widths and ranges)

• Available versions include:
  • Narrow-beam models for focused long-distance measurement
  • Wide-beam options for broader area sensing or irregular object detection
• This allows users to select the ideal UK6 model based on conveyor size, tank depth, or robotic reach.

 Important: Multiple beam configurations make the UK6 suitable for both precision long-range tasks and large-area monitoring.

Intrinsic Synchronism

• Built-in synchronization ensures that nearby ultrasonic sensors do not interfere with each other.
• Ideal for conveyor lines, AS/RS systems, and multi-sensor installations.

Operational Advantages

• Reliable detection regardless of material transparency or reflectivity
• Extended sensing range for long-distance detection tasks
• Resistant to environmental contaminants such as dust and moisture
• Simple configuration using Teach-in
• Stable performance in dynamic or vibrating environments

Applications

• Pallet and box detection in logistics
• Distance measurement and positioning
• Tank level sensing (liquids or bulk solids)
• Packaging and processing machinery
• Warehouse automation
• Robotics and AGV/AMR navigation
