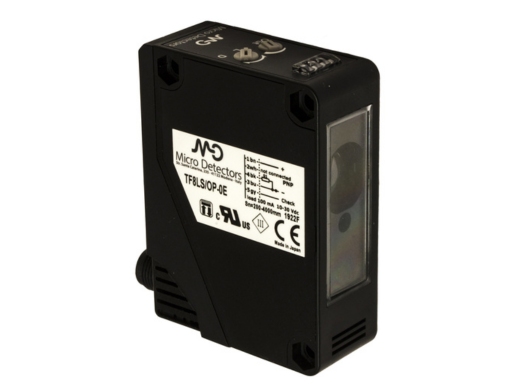

Photoelectric Cubic sensors TF8 Series

Datasensing TF8 Series

The TF8 Series presents a premium family of miniature photo-electric sensors, engineered for tight installation spaces, versatile detection modes, and industrial-grade reliability. With the compact footprint and advanced features, the TF8 line offers exceptional flexibility, fast response, and robust performance.

Design & Functionality

• The series uses an extremely compact housing, enabling installation in very confined machine frames, conveyor side-channels or compact automation modules.
• Optical variants include:
  • Diffuse-reflection and proximity detection for parts, presence/absence and object counting in short-to-medium range.
  • Background suppression models for reliably detecting objects on or near complex backgrounds.
  • Polarised or retro-reflective models for shielded detection of reflective surfaces or transparent targets.
  • Through-beam emitter/receiver models for longer-span detection where required.
• Output logic: Selectable NPN or PNP, and Light-On/Dark-On mode in many models — offering flexible integration with different automation systems.
• Protection rating of IP67, built for industrial temperature and environment conditions — delivering reliable operation in dusty or splashed machine areas.

Total Crossed Beams

(In this miniature sensor context, this term is used to denote that the sensor offers consistent detection coverage across its sensing zone rather than literal crossed beams.)

• The TF8 Series ensures a stable detection zone even when mounted in tight frames, with targets at variable positions, speeds or distances — resulting in fewer missed detections and higher repeatability in automated lines.
• Its compact form, fast switching and versatile optics make it ideal for automation setups where space is at a premium but performance cannot be compromised.

Beam Pitch Options

(Here interpreted as selectable sensing-distance / optic variant options rather than literal beam spacing.)

• Example: A diffuse/proximity variant designed for short-range object presence detection.
• Example: A background-suppression variant capable of detecting objects on contrasting backgrounds.
• Example: A through-beam variant offering longer-span detection in the same compact housing.
• These variant options allow you to choose a TF8 model that matches your target size, mounting clearance, background conditions and speed requirements — providing design flexibility.

Intrinsic Synchronism

• The electronics and optics are fully integrated within the compact housing — no external synchronising modules or extra wiring required — simplifying installation and reducing commissioning time.
• With compact size and built-in diagnostic features (LEDs, trimmers, selectable logic) the setup is streamlined and maintenance is easier.

Operational Advantages

• Miniature footprint with full detection capability: The TF8 Series fits into very limited mounting spaces while supporting a variety of optical modes — ideal for electronics, packaging and automated assembly lines.
• Versatile optics in one family: From proximity to background suppression, retro-reflective to through-beam, the TF8 line covers multiple application needs, reducing stock complexity.
• High-throughput ready: With fast response and high switching capability, these sensors can meet demands of rapid conveyor or pick-and-place systems.
• Industrial strength in compact form: IP67 rating, robust housing, logic flexibility and the mechanical durability deliver dependable performance even in harsh environments.
• Applications: Excellent for conveyor presence/absence detection, packaging film detection, small part assembly, electronics machine side-frames, and any automation scenario where compact installation, fast switching, and reliable sensing are required.
