Photoelectric Cubic sensors BS-BV Series

Datasensing BS-BV Series

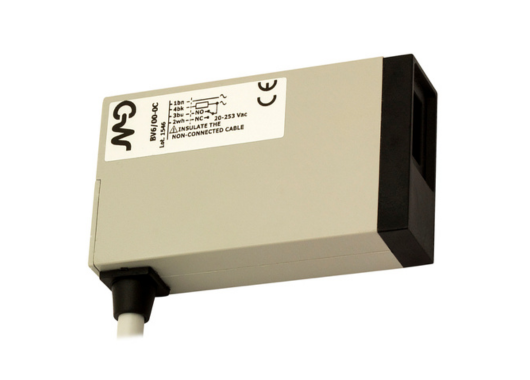

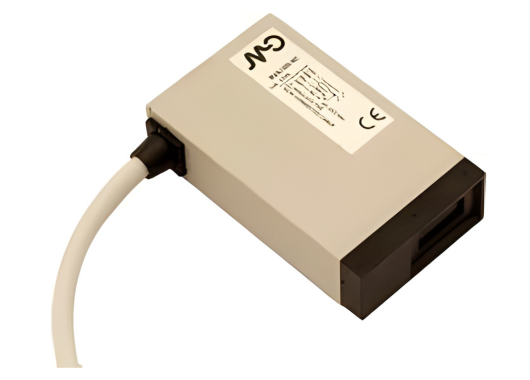

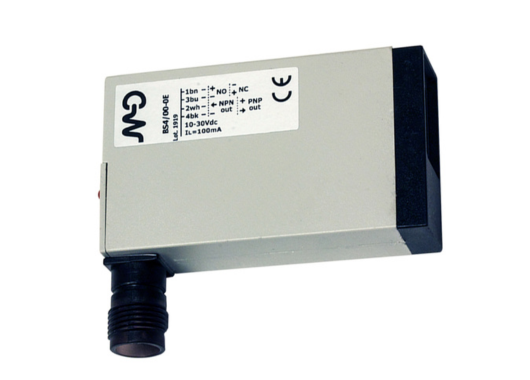

The BS-BV Series provides a flexible and robust family of photoelectric sensors in a compact cubic housing, designed for installation in restricted machine spaces while offering high-performance detection capabilities. With models covering diffuse, retro-reflective, and polarized modes, and spanning short to long sensing distances (up to 1.6 m diffuse or 8 m retro-reflective), the series delivers versatility in application, selectable logic/output types, and industrial durability.

Design & Functionality

• The solver uses a rectangular (cubic) housing approx. 16 × 37 × 64 mm in many models, enabling installation in constrained machine areas.
• Optical modes include diffuse reflection (nominal distances ~100 mm / 200 mm / 400 mm / 1 600 mm depending on variant) and retro-reflective up to ~8 m.
• Output options: For DC versions, multifunctional DECOUT® output (selectable NPN/PNP and NO/NC); for AC versions, multivoltage 20-253 V AC with TRIAC output (NO/NC selectable).
• Sensitivity adjustment is available via trimmer, enabling fine tuning of detection thresholds for varied backgrounds or target surfaces.
• LED status indicator (red) for output state, enabling verification of detection at a glance.
• Housing is fully resin‐filled, providing mechanical and environmental protection; rated for IP65 in standard models.

Total Crossed Beams

(In this cubic photo-electric sensor context, “total crossed beams” is interpreted as the guarantee of consistent detection coverage across the sensing zone rather than literal optical crossed beams.)

• The BS-BV Series ensures a stable detection field, whether in short-range diffuse mode or long-span retro-reflective mode, meaning fewer missed triggers or false detections even when backgrounds vary.
• This reliability is especially valuable in tight automation environments, conveyor systems or machine instrumentation where space is limited yet detection performance must remain consistent.

Beam Pitch Options

(Here interpreted as selectable sensing-distance / optical-variant options rather than literal beam pitch.)

• Example diffuse reflection variants: nominal ~100 mm, ~200 mm, ~400 mm, ~1 600 mm.
• Example retro-reflective variant: up to ~8 m sensing distance.
• These varying nominal distances allow the sensor to be selected to match target size, mounting clearance, background conditions and span — offering flexibility in design and system integration.

Intrinsic Synchronism

• The electronics are self-contained — no external synchronisation modules or special wiring are required — installation is simplified and less error-prone.
• Power-on delay is approx. 200 ms in many models, enabling quick readiness after startup.

Operational Advantages

• Wide functional versatility: With diffuse, retro-reflective and polarized modes in one series, the BS-BV covers a broad range of detection tasks from short-range object presence to long-span sensing.
• Output flexibility and logic selection: With selectable NPN/PNP, NO/NC logic or AC TRIAC versions, the series adapts to different control systems without need for additional converters.
• Compact industrial form: The cubic housing enables mounting in restrictive machine cavities or tight automation layouts while maintaining performance — particularly useful in packaging machines, pick-and-place systems, and conveyor installations.
• Industrial durability and reliability: With resin-filled housing, IP65 rating, LED status indicator, sensitivity adjustment, and long sensing ranges, the BS-BV Series is built for demanding factory use.
• Applications: Ideal for presence/absence detection, conveyor object detection, machine guarding monitoring, background-rich or reflective surfaces, long-span object detection up to metres away — where compact mounting, versatile optics, and reliable performance are required.
