Inductive Cylindrical sensors VM Series

Datasensing VM Series

The VM Series delivers dependable inductive metal-part detection optimized for AC-powered industrial environments. Its multivoltage operation (20…250 V AC) and compact M12 format make it ideal for standard manufacturing installations where reliable object presence detection is required.

Design & Functionality

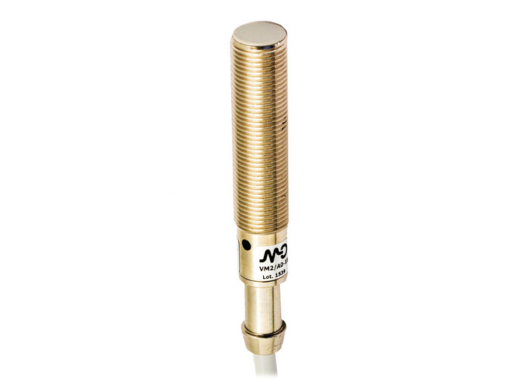

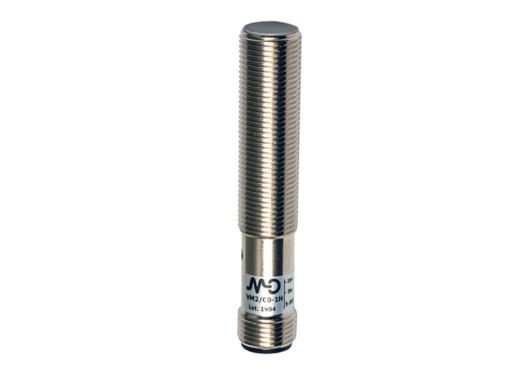

• The sensor features a nickel-plated brass M12 × 1 cylindrical body, offering solid mounting in industrial applications.

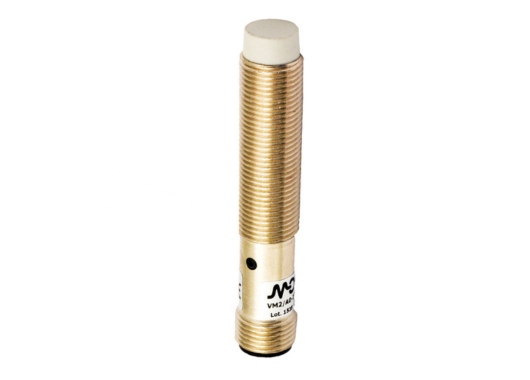

• Flush-mount (shielded) models offer a nominal sensing distance of about 2 mm, while non-flush (unshielded) models offer about 4 mm, allowing flexibility depending on mounting clearance and background metal.
• The sensor supports a wide range of supply voltage: 20…250 V AC / 50-60 Hz, enabling direct integration into AC mains systems without requiring DC conversion.
• With correction factors for different metals (e.g., copper ~0.40, aluminium ~0.50, brass ~0.60, stainless steel ~0.75-0.80), the VM Series is capable of tuned detection across varied metal types.
• The repeat accuracy is < 5% and thermal drift of Sr is < 10%, delivering stable sensing performance despite environmental variation.

Total Crossed Beams

(In this inductive sensor context, this means a consistent detection field across the active face rather than literal optical beams.)

• The VM Series ensures a uniform detection zone, enabling reliable detection of metal objects even when alignment is not perfect or background conditions vary.
• This leads to repeatable detection performance and fewer missed triggers or false positives in standard manufacturing settings.

Beam Pitch Options

(Here interpreted as selectable sensing distances/mounting styles rather than literal beam pitch.)

• Models in the VM Series include ~2 mm Sn (flush) and ~4 mm Sn (non-flush) variants.
• The presence of both shielded and unshielded mounting styles enhances flexibility to suit different installation conditions where either background metal or clearance constraints exist.

Intrinsic Synchronism

• The VM Series integrates internal electronics for timing and protection: no external synchronisation wiring required, simplifying installation.
• The time-before-availability (startup delay) is ≤ 200 ms in typical models, enabling quick readiness in automated systems.

Operational Advantages

• AC-Voltage Compatibility: The broad AC voltage range allows seamless integration into standard AC mains-powered automation systems.
• Compact & Flexible Mounting: The M12 housing and choice between flush/unshielded mounting make the VM Series suitable for many general manufacturing and automation tasks.
• Reliable Metal Detection: With metal correction factors, repeat accuracy < 5%, and stable performance across different materials and conditions, this series delivers dependable detection for metal parts.
• Applications: Ideal for metal-object presence detection in manufacturing lines, conveyor systems, packaging equipment, automation systems with AC supply — especially where metal parts, AC mains integration, and industrial grain reliability are required.
