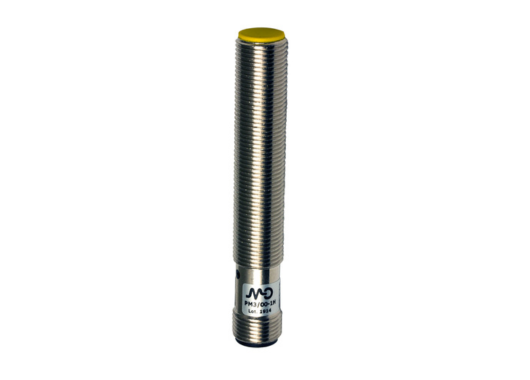

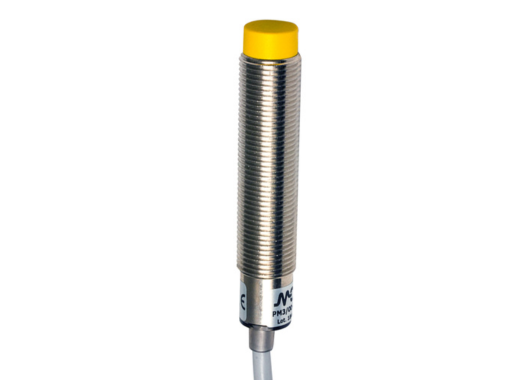

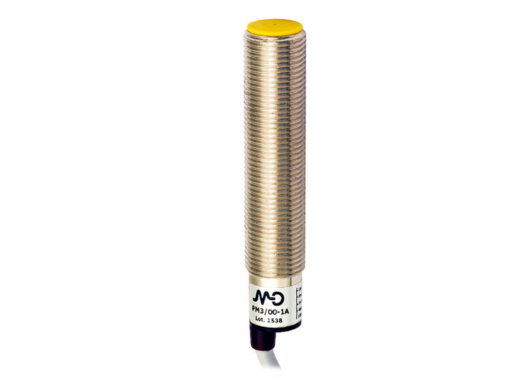

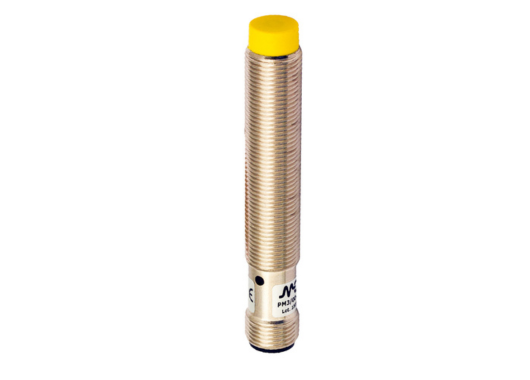

Inductive Cylindrical sensors PM3 Series

Datasensing PM3 Series

The PM3 Series delivers high-performance inductive sensing in a compact M12 cylindrical housing, engineered for robust industrial automation. With a wide range of models—including standard, shielded/unshielded and DECOUT® push-pull outputs—the PM3 ensures fast, stable object detection in metal-detection tasks across various environments.

Design & Functionality

• The PM3 features a compact M12 × 1 cylindrical body (nickel-plated brass) with flush or non-flush mounting options, ideal for space-constrained installations.
• Nominal sensing distances start at 2 mm (shielded) or 4 mm (unshielded) depending on model variant, supporting tight-space detection of metal targets.
• Offers high repeat accuracy (less than ±5%), thermal drift under 10%, and built-in protections including reverse-polarity, short-circuit auto-reset and impulse over-voltage protection—ensuring reliable performance in harsh environments.
• Available output configurations include NPN/PNP, NO/NC selectable or DECOUT® push-pull models, giving flexibility for system integration.

Total Crossed Beams

(For inductive sensors, this translates to the stable detection field across the active face rather than optical beams.)

• The PM3 maintains a consistent magnetic field at its sensing face, ensuring any metal object entering that zone triggers detection reliably—regardless of background or mounting variations.
• This uniform detection zone supports repeatable detection of small metal targets, even under contamination, vibration or mounting inconsistencies.

Beam Pitch Options

(In this context, this indicates selectable sensing distance/resolution rather than literal beams.)

• Standard models: ~2 mm nominal sensing distance (shielded flush mount)
• Unshielded models: ~4 mm nominal distance (for non-flush mount)
• These options allow you to choose between ultra-short detection (tight mounting) or slightly larger spacing for easier alignment.

Intrinsic Synchronism

• Electronics are internal and fully integrated: auto-reset protection, minimal wiring complexity, and readiness time typically ≤ 100 ms upon power-up.
• High switching frequency (up to 1 kHz) supports fast-moving metal detection in automation, robotics and assembly lines.

Operational Advantages

• High Switching Frequency: The PM3 can switch at up to 1 kHz, making it suitable for high-speed production lines and tight-cycle automation.
• Easy Configuration: With selectable output logic (NO/NC), and variant options (shielded vs unshielded, cable vs M12 connector), the PM3 offers flexibility for rapid integration.
• Applications: Ideal for metal part detection, machine tool monitoring, automotive component sensing, robotics end-of-arm detection and general industrial automation—especially in environments where compact size, high speed and rugged industrial protection are required.
