Inductive Cylindrical sensors AB1 Series

Datasensing AB1 Series

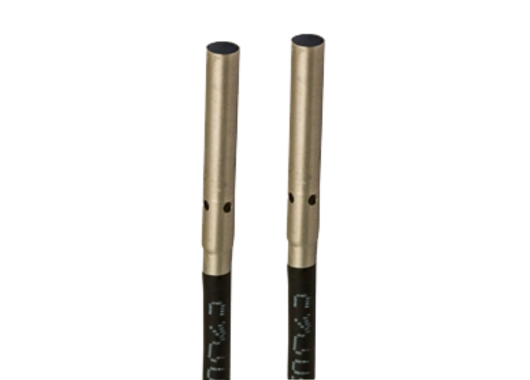

The AB1 Series delivers precision inductive sensing in a remarkably small M4 cylindrical package, designed for extremely constrained spaces. With nominal sensing distances down to ~0.6 mm and a robust industrial build, these sensors provide reliable detection in ultra-tight mechanical assemblies.

Design & Functionality

• The sensor features a M4 stainless-steel threaded body with flush-mount capability and incredibly compact footprint, making it ideal when space is at a premium.
• With nominal sensing distances of approximately 0.6 mm or 1 mm, the AB1 Series supports detection of very small metal targets even when clearance is minimal.
• Built with industrial-grade electronics offering high repeat accuracy, low thermal drift and protections such as reverse-polarity and short-circuit auto-reset which ensure consistent performance under demanding conditions.
• Available in both NPN and PNP output configurations with fixed-cable or connector variants, facilitating flexible system integration.

Total Crossed Beams

(In the inductive sensor context, this corresponds to a stable magnetic detection field over the active face.)

• The AB1 maintains a stable and uniform detection zone despite its miniature size, enabling reliable detection of metal parts even when mounting conditions vary slightly or parts are misaligned.
• This ensures repeatable and dependable sensing in high-density installations and micro-automation setups.

Beam Pitch Options

(Here this corresponds to selectable sensing distances/resolutions rather than literal optical beams.)

• With nominal distances of ~0.6 mm (standard) and ~1 mm (extended clearance) depending on variant, you have the freedom to choose the detection range best for your mechanical constraints.
• The compact design and high precision allow detection of extremely small components even in cramped assemblies.

Intrinsic Synchronism

• The AB1 Series uses fully integrated electronics with built-in synchronisation and protection, meaning no external synchronising wiring is necessary and setup time is reduced.
• Time-before-availability is minimal, enabling rapid deployment and integration into automatic lines.

Operational Advantages

• High Precision & Small-Space Fit: The AB1 Series excels in applications where traditional sensors are too large—offering a compact M4 form-factor and ultra-short sensing distances.
• Flexible Integration: With NPN/PNP option, flush-mount threading, and stainless-steel body, the sensor is well suited for high-vibration, metal-rich, or wash-down environments.
• Applications: Perfect for electronics assembly, micro-mechanical sensing, robotic end-effectors, tight-clearance conveyors, or any setting where space is extremely constrained, target metal parts are small, and durability in industrial conditions is required.
