The CF Series offers a comprehensive family of plastic-optical-fibre sensor units (emitter + receiver), engineered for compact object detection, flexible installation, and robust environmental protection. With ultra-slim fibre heads (Ø 1 mm core), sensing distances from 50 mm up to 1 200 mm depending on head/fibre type, multiple head geometries (straight, angled, spiral), and protection rating of IP67, this series delivers exceptional installation flexibility, high adaptability, and reliable performance in challenging machine-side environments.

Design & Functionality

• The sensors combine an emitter and receiver in a fibre-optic system, enabling detection in very tight or otherwise inaccessible locations thanks to ultra-slim optical fibres and insertion heads.
• Operational and mechanical highlights include:
  • Wide range of head styles – ultra-slim for small-object detection, long-distance fibre heads for larger span sensing.
  • Long distances up to ~1200 mm with appropriate head/fibre configuration, enabling detection across larger gaps or tunnels.
  • Core diameter 1 mm optical fibre, enabling fine mechanical routing and minimal footprint.
  • Protection rating IP67, enabling reliability in dusty or machine-side environments where the sensor head may be exposed.

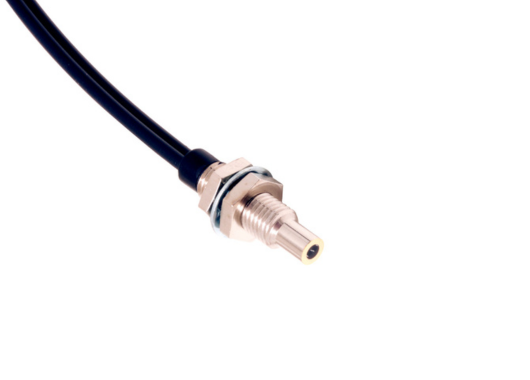

• Mechanical & environmental robustness: The fiber system includes nickel-plated brass heads, optional sleeves, and lengths from 0.5 m to several metres, enabling flexible routing. Examples: axial plastic fibre heads with 1 mm core, operating temperatures from –40 °C to +55 °C for fixed installation.
• Installation flexibility: With separate fibre heads and amplifier/receiver modules, the CF family supports remote sensing, tight-space detection, and modular upgrade of optical path without changing electronics.

Total Crossed Beams

(Here interpreted as “complete detection coverage via fibre heads” rather than literal crossed optical beams.)

• The CF Series ensures a fully accessible detection point via flexible fibre routing, meaning that regardless of installation constraints, the emitter/receiver pair can be positioned for optimal path and reliably detect the target — reducing missed detections and improving installation success.
• This is especially beneficial in automation systems where targets are small, hidden, or moving through constrained geometries, ensuring consistent detection across the allowed path.

Beam Pitch Options

(Here interpreted as variant options of fibre head style, sensing distance, and fibre length rather than literal beam spacing.)

• Example variant: Diffuse-reflection head «RB4-xx» with sensing distance ~50 mm.
• Example variant: Through-beam head «RB9-xx» with sensing distance up to ~1200 mm.
• Fibre lengths from 0.5 m to 2 m depending on model.
• These variant options allow you to choose a CF model that matches your detection distance, target size, routing space and mounting arrangement — providing design flexibility.

Intrinsic Synchronism

• The emitter and receiver are matched and designed to work together in the same family, ensuring correct synchronisation (emitter + receiver) via the fibre-optic interface without additional external modules — simplifying wiring and reducing component count.
• With modular fibre heads and simple amplifier/receiver units, the CF series supports quick reconfiguration, simplified routing, and low maintenance, making it highly suitable for retrofit and compact sensor installations.

Operational Advantages

• Ultra-slim fibre heads: With Ø 1 mm cores, the CF Series excels at detecting small objects, passing through tight channels or obscure positions where conventional sensors cannot reach.
• Flexible deployment and routing: Fibre and head options allow the sensing point to be physically remote from the electronics, enabling installation in constrained or hazardous zones.
• Variable sensing distances: From ~50 mm to ~1200 mm depending on head, the CF Series accommodates a wide range of gap or path lengths.
• Industrial protection and reliability: With IP67 protection rating and durable fibre-optic heads, the system is suitable for machine-side installation, packaging, automation and conveyor systems where space is limited.
• Applications: Ideal for tight-space object detection, mis-feed detection, label or foil edge sensing in confined areas, transparent or small-part detection, retrofit of sensors in machines with limited access — wherever flexible fibre-optic path, compact head, and reliable detection are required.
