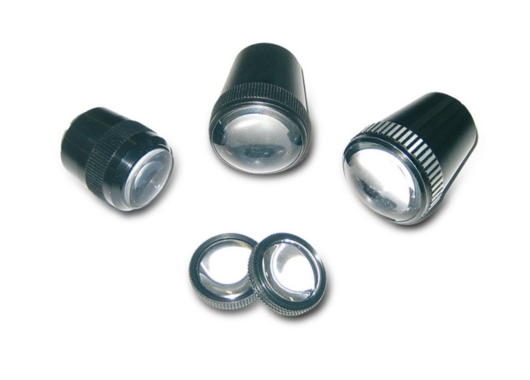

Datasensing Lenses

Datasensing Lenses

The Lenses range from Datasensing provides a comprehensive family of precision optical modules, engineered for flexible integration into smart camera and vision sensor systems, high optical quality, and industrial reliability. Covering focal lengths from ~6 mm up to ~17.5 mm (or equivalent formats), multiple formats (micro-video, C-mount) and designed for field-interchangeable use, the series delivers optical versatility, machine-vision readiness, and high installation flexibility.

Design & Functionality

• The lenses are built with industrial-grade optics, suitable for smart cameras and sensors in rugged automation environments.
• Key optical/operational features include:
  • A variety of focal lengths (e.g., 6 mm, 8 mm, 12.5 mm, 17.5 mm) to support different field-of-view and working-distance requirements.
  • Form-factors such as micro-video lenses and C-mount lenses, enabling compatibility with a wide range of smart camera modules.
  • Field-interchangeable design, allowing users to swap lenses without complete system change — offering optical flexibility in installation or when repurposing vision systems.
  • Designed for industrial usage with temperature range, rugged housing and suitable for IP-rated camera installations (e.g., IP65/67 rated systems).

Total Crossed Beams

(In this optical component context, the phrase denotes ensuring full optical coverage and consistency rather than literal crossed beams.)

• The Lenses range ensures consistent image coverage and clarity, meaning that regardless of focal length choice or mounting adjustment, image quality remains reliably high — resulting in fewer optical artefacts, greater measurement repeatability, and more stable vision performance.
• This flexibility is especially beneficial when camera systems are re-deployed, when field of view changes, or when rapid machine alterations are needed without re-engineering the optics.

Beam Pitch Options

(Here interpreted as variant options of focal lengths/formats rather than literal beam pitch.)

• Example variant: Micro-video lens, 6 mm focal length, for tight field-of-view and close-up inspection.
• Example variant: Micro-video lens, 12.5 mm focal length, for moderate working distance inspections.
• Example variant: C-mount lens, 17.5 mm focal length, for larger field of view or higher resolution imaging.
• These optical variant options allow you to choose a lens that matches your sensor’s resolution, imaging distance, field size and machine geometry — giving design flexibility.

Intrinsic Synchronism

• The optics, mounting interface and mechanics are designed to integrate seamlessly with the smart camera or sensor housing — no external adapter required in many cases — simplifying installation and reducing configuration time.
• With field-interchangeable modules, lens changes can be made quickly to adapt vision systems to new tasks or machines — supporting fast re-configuration, reduced downtime, and cost-effective reuse of camera hardware.

Operational Advantages

• Optical versatility: With a broad range of focal lengths and mounting formats, the Lenses range supports different inspection scenarios, from close-up detection to broader field imaging.
• Machine-vision readiness: Designed for smart cameras and sensor modules, the lenses offer compatibility, field-interchangeability, and industrial usage robustness.
• Installation flexibility: Swapable lenses mean the same camera system can be adapted to multiple use cases, reducing inventory and redesign costs.
• Applications: Ideal for smart camera systems in packaging inspection, quality control lines, vision-guided robots, barcode/2D-code reading, ID verification, web/film inspection — wherever optical adaptability, image clarity, and vision system flexibility are required.
