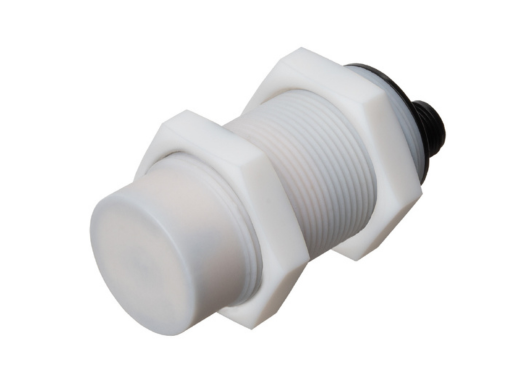

Capacitive Cylindrical sensors C30FT Series

Datasensing C30FT Series

The C30FT Series delivers premium capacitive detection performance in demanding environments. With a PTFE body and stainless-friendly mounting format, these sensors are engineered for hygienic use and rugged industrial reliability.

Design & Functionality

• The M30 housing format encapsulated in PTFE ensures high resistance to chemicals, wash-down and harsh conditions — making the sensor ideal for food, beverage and pharmaceutical production.
• Adjustable sensitivity allows precise tuning to detect virtually any material—metal, plastic, ceramics, liquids or powders—irrespective of their mounting or background.
• Versions are available with IO-Link communication, enabling remote diagnostics and configuration, while standard digital outputs support conventional automation systems.
• With high noise immunity and a high switching frequency (50 Hz), the C30FT is designed for fast and dependable detection even in challenging industrial conditions.

Total Crossed Beams

(In this capacitive sensor context, the equivalent emphasis is on the stable detection field across the active target area.)

• Ensures consistent detection across the rated sensing distance, reducing false triggers and missed signals in dynamic production lines.
• The stable field design supports detection of thin or irregular items, as well as materials with varying dielectric properties.

Beam Pitch Options

(For this sensor family, the analogous flexibility is in sensing distance and resolution.)

• Nominal sensing distances include ~16 mm (shielded / food-hygienic) and ~25 mm (unshielded) depending on model variant.
• This flexibility allows the sensor to be tailored for close-range precision detection or slightly longer-range presence detection, depending on the installation geometry.
• Repeat accuracy is ~5% and thermal drift is under 20%, supporting consistent detection performance over time.

Intrinsic Synchronism

• Built-in electronics ensure that each sensor operates with stable internal timing and no external synchronisation is required, saving installation time and reducing complexity.
• With automatic screening for reverse-polarity, short-circuit and ripple protection, the C30FT is designed for reliable industrial operation in harsh environments.

Operational Advantages

• High Switching Frequency: Up to 50 Hz switching speed enables use in moderately fast automation systems, conveyor feeds and packaging lines.
• Easy Configuration (Teach-In): Adjustable sensitivity and IO-Link variants allow quick setup and fine-tuning of detection parameters—ideal when materials or installations vary.
• Applications: Suitable for food & beverage lines, pharmaceutical production, chemical industry, packaging systems, conveyors with metallic or non-metallic items, and cleaning/wash-down environments. The C30FT Series is especially suited for hygienic installations, compact mounting and diverse material detection.
