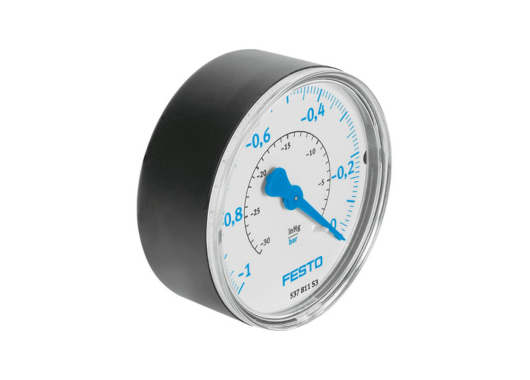

Festo vacuum displays form an integral part of vacuum system monitoring and control. These devices offer real-time vacuum level indication, visual warning zones, and robust mounting options for industrial environments. By clearly showing vacuum states, they enhance safety, productivity and system reliability.

These displays are essential in vacuum handling systems, packaging lines, pick-and-place machines and any application where vacuum quality must be monitored continuously. 🎯

⭐ Important: Vacuum displays provide instant visual feedback, adjustable warning zones, and industrial durability, enabling swift detection of vacuum system faults and improving process control.

Design & Functionality

• Vacuum displays feature a dial or digital indicator showing vacuum level from atmospheric down to high vacuum (e.g., −1 bar).
• Key functional features include:
  • Adjustable red/green zone indication for rapid visual alarm of vacuum drop or overload.
  • Dual scale options, e.g., bar and inHg or psi, allowing flexible readout depending on application.
  • Industrial housing, often ABS or polycarbonate, suited for vacuum systems in manufacturing.
• These displays help maintain high machine uptime by allowing operators and maintenance teams to monitor vacuum quality and detect leaks or faults early.

⭐ Important: The red/green zone indicator enhances process safety by offering clear visual status of vacuum levels at a glance.

Total Crossed Beams

(Adapted concept: complete visual coverage of vacuum status)

• The display covers the complete vacuum range, often from −1 bar to 0 bar, ensuring full monitoring of vacuum system performance.
• This results in full visibility, enabling quick diagnostics and reducing downtime.

Beam Pitch Options

(Translated as variants in size, scale, mounting and connection formats)

• Available nominal sizes: e.g., 40 mm or 63 mm diameter dial formats.
• Connection threads: G1/8, G1/4, R1/8 etc.
• Scales: Single or dual, with units bar, inHg, psi.
  ⭐ Important: The variety of formats allows selection based on panel space, readout preference and connection requirements.

Intrinsic Synchronism

• The internal mechanism and indicator linkage ensure that vacuum changes are instantaneously reflected on the display, providing synchronous visual feedback.
• This ensures accurate and timely monitoring, essential for vacuum-critical systems.

Operational Advantages

• Visual process monitoring—operators can see vacuum status at a glance.
• Early fault detection via adjustable warning zones.
• Ease of integration into vacuum systems—bulkhead or panel mounting, standard connections.
• Industrial durability, suited for automation, packaging and handling environments.
• Applications: Vacuum gripping systems, packaging lines, material handling, automation cells, suction-cup monitoring—where vacuum level visibility, system reliability, and maintenance readiness are required.
