Universal Valve Terminal

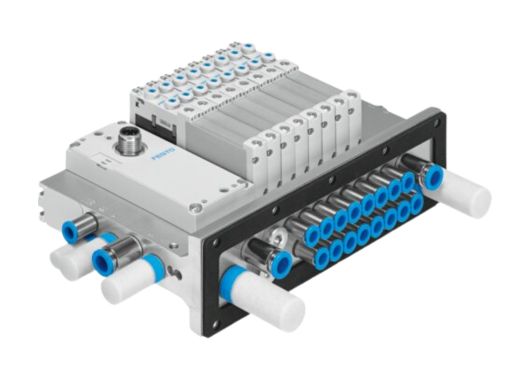

Festo Universal Valve Terminal

The Festo Universal Valve Terminal delivers versatile and efficient pneumatic control for demanding automation environments. Engineered with a modular and robust design, this valve manifold supports multiple valve positions, integrated electrical interfaces, and expandable pressure zones — making it perfectly suited for both typical and complex automation tasks.

These terminals are designed for standardised installation with accessible diagnostics and plug-in connectivity, enabling quick commissioning and simplified maintenance.

⭐ Important: Universal valve terminals provide broad configuration flexibility, streamlined installation and effective integration into control systems — making them the go-to solution for standard pneumatic valve control.

Design & Functionality

Universal valve terminals allow multiple pneumatic valves to be mounted on a common manifold block with shared compressed-air and electrical supply. This centralised architecture reduces tubing and wiring, simplifies system layout, and lowers installation costs.

Variants include:
• Fixed-grid or modular valve positions for 4 to 24 valves
• Fieldbus, multi-pin, or individual electrical connections
• Multiple pressure zones for different parts of the system
• Manual override options, integrated LED diagnostics, and plug-in modules

⭐ Important: By combining many valves on one terminal with central supply and control, the installation effort, wiring complexity and maintenance time are dramatically reduced.

Total Crossed Beams

(Applied to the functional coverage of valve terminal families)
The universal valve terminals span a full range of valve sizes, flow capacities and mounting configurations — ensuring coverage of standard automation tasks. They maintain consistent performance whether in compact machines or large process installations.

Beam Pitch Options

(Translated as: valve positions, pressure zones, connection types)
Wide options include:
• Up to 24 valve positions in one terminal
• Up to 13 pressure zones (in some models)
• Electrical interfaces: multi-pin, fieldbus, IO-Link, individual wiring
• Valve functions: 2x3/2-way, 3/2, 5/2, 5/3, monostable and bistable configurations
• High nominal flow rates such as 330 l/min at 10 mm, 630 l/min at 14 mm, 1200 l/min at 18 mm nominal width

⭐ Important: The extensive choice of valve positions, pressure zones and interfaces ensures the terminal can be tailored to the application’s scale, complexity and connectivity requirements.

Intrinsic Synchronism

The design integrates control and diagnostic modules with plug-in valves and manifold blocks to ensure aligned performance, reduced response times and minimal installation disruptions. Shared air and electrical supply maintains synchronised operation across all valve positions. This supports rapid switching, balanced pressure distribution and reliable long-term operation.

Operational Advantages

• Simplified installation—one central manifold for many valves
• Reduced tubing & wiring plus fewer leak points
• Modular flexibility—expandable valve positions and pressure zones
• Integrated diagnostics and communication for maintenance and monitoring
• Compact and robust construction for industrial use and harsh environments
Applications: Machine automation, packaging systems, handling cells, compressed-air distribution frames, process plants, control panels.
