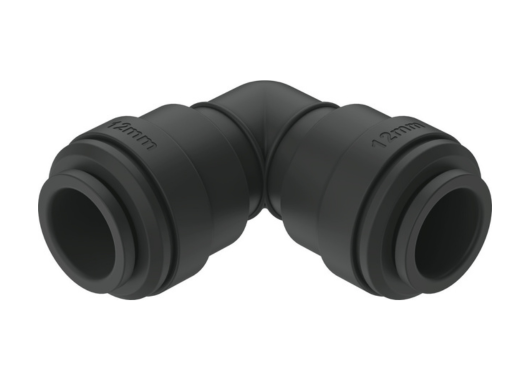

Pneumatic Piping Fittings

Festo Pneumatic Piping Fittings

Festo pneumatic piping fittings provide reliable and versatile connectivity across all pneumatic setups. Built with precision engineering and industrial-grade materials, these fittings ensure secure sealing, consistent airflow, and long-term operational reliability, even under demanding mechanical and environmental conditions.

Available in multiple series, port sizes, body materials, and connection styles, Festo fittings support everything from simple tube-to-port transitions to complex multi-branch pneumatic routing. Their compact, standardized, and user-friendly design ensures rapid installation and compatibility with global pneumatic systems.

⭐ Important: Festo fittings guarantee leak-free connections, high mechanical strength, and long service life—critical for maintaining stable pneumatic performance in industrial automation environments.

Design & Functionality

Pneumatic piping fittings enable the seamless connection of tubes, valves, actuators, and air supply lines within a pneumatic circuit. Festo fittings are engineered for quick push-in connections, optimal air passage, and secure retention, minimizing air loss and ensuring efficient system performance.

Festo offers a wide fitting range, including:
• Push-in fittings (straight, elbow, tee, Y, bulkhead, swivel)
• Threaded fittings (male, female, straight, angled)
• Reducers, dividers, and manifolds
• Tubing connectors for polyurethane, PA, PE, and PTFE tubing
• Stainless-steel and metal-bodied variants for harsh environments
• Special fittings for FDA, cleanroom, or corrosion-resistant requirements

These fittings are built for fast assembly, tight sealing, and high repeatability, supporting both mobile and stationary pneumatic equipment.

⭐ Important: Push-in technology enables tool-free, rapid installation—significantly reducing assembly time and improving maintenance efficiency.

Total Crossed Beams

(Applied to the functional coverage of fitting types)

Full connection coverage across straight, angled, branching, and reducing configurations.

Ensures that any pneumatic routing requirement—whether simple or complex—can be accommodated with the appropriate fitting shape and port combination.

Designed to maintain stable airflow rates and structural integrity regardless of circuit layout or tube pathing.

Beam Pitch Options

(Translated as: size options, materials, thread types, tube compatibility)

Wide range of thread sizes, tubing diameters, and material selections to match every application.

Available configuration options include:
• Tube sizes ranging from small-diameter micro tubing to large industrial lines
• Thread types such as G, R, and NPT
• Body materials including polymer, nickel-plated brass, and stainless steel
• Optional swivel joints, rotation-resistant bodies, or compact forms
• Special versions for aggressive media and high-temperature environments

This flexibility ensures fittings can be optimized for compact installations, high-pressure performance, corrosion resistance, or hygienic workspaces.

⭐ Important: Multiple tube and thread size options allow precise matching to system requirements, ensuring optimal flow capacity and connection strength.

Intrinsic Synchronism

Internal clamping and sealing components are engineered for uniform engagement along the tubing surface, ensuring consistent retention and reliable sealing regardless of temperature, vibration, or pressure fluctuations.

Optional features such as O-ring enhanced sealing, stainless-steel gripping teeth, or 360° swivel bodies maintain smooth assembly and secure connections under dynamic conditions.

Supports accurate, stable pneumatic behavior and minimizes leakage points in the system.

Operational Advantages

• Leak-free sealing through high-precision clamping and O-ring systems
• Wide selection of fitting shapes, sizes, and materials
• Fast push-in assembly and easy disconnection for maintenance
• High resistance to chemicals, corrosion, mechanical stress, and vibration
• Long service life in demanding industrial conditions

Applications: Automation lines, pneumatic machinery, air preparation systems, pick-and-place units, packaging machines, process control systems, and general industrial air distribution.
