Pneumatic Fittings

Festo Pneumatic Fittings

Festo pneumatic fittings are engineered to provide precise, durable, and highly reliable air connections for all types of pneumatic circuits. Developed in accordance with industrial standards, these fittings ensure airtight performance, minimal pressure loss, and long-term mechanical stability across automation, manufacturing, and processing environments.

Available in a wide range of shapes, sizes, and connection types, Festo fittings support push-in, threaded, and special-function configurations—making them compatible with tubing, actuators, valves, manifolds, and industrial pneumatic components.

⭐ Important: Festo pneumatic fittings ensure completely leak-free connections, fast assembly, high sealing integrity, and durability—ideal for any industry using compressed air.

Design & Functionality

Pneumatic fittings from Festo are designed to connect air tubes, components, and machinery with maximum convenience and reliability. They utilize precisely machined bodies, high-quality sealing technology, and optimized airflow geometry to ensure secure attachment and consistent performance.

Festo offers multiple fitting families, including:

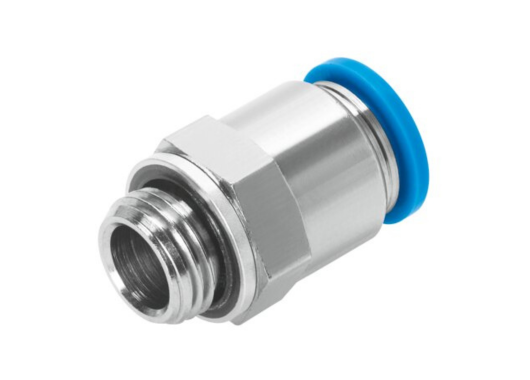

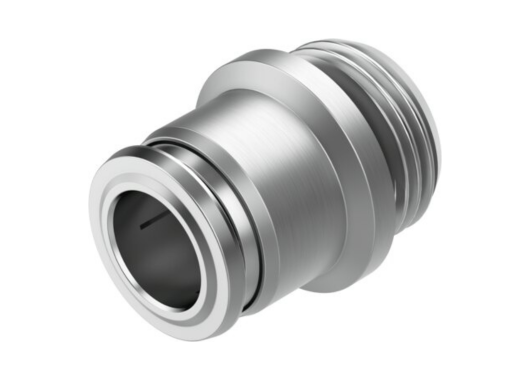

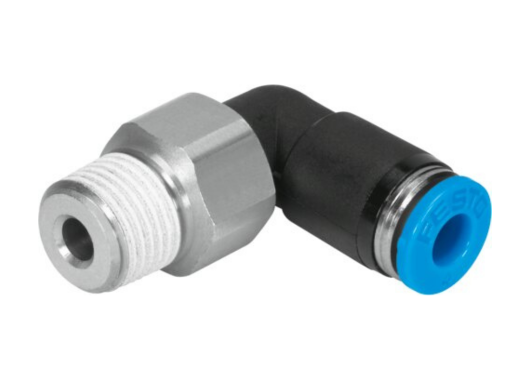

• Push-in fittings (quick and easy tube insertion)

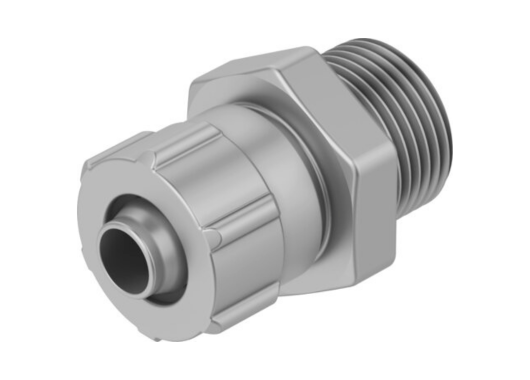

• Threaded fittings (metal, polymer, and stainless options)

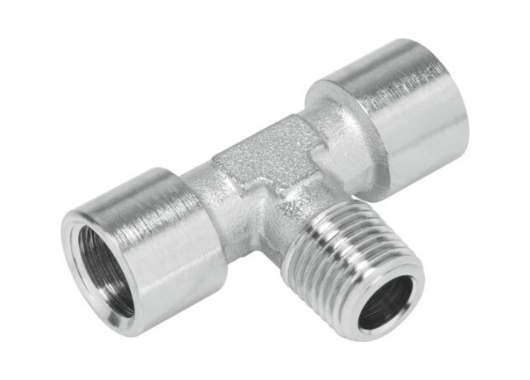

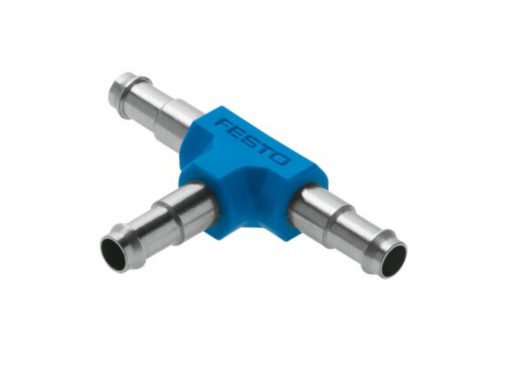

• Elbows, tees, Y-fittings, and cross connectors
• Flow control fittings
• Rotary/swivel fittings
• Special vacuum and high-temperature variants

These fittings are engineered for smooth airflow, low leakage rates, and high resistance to mechanical loads and vibration.

⭐ Important: The push-in fitting technology enables extremely fast installation and maintenance, reducing downtime in automation environments.

Total Crossed Beams

(Applied to coverage of fitting types)

Complete pneumatic connectivity coverage achieved through multiple fitting families designed to support every circuit requirement.

Ensures full functional capability regardless of tube size, angle, operating pressure, or machine layout.

Designed to maintain stable airflow delivery and consistent sealing throughout the system’s operating life.

Beam Pitch Options

(Translated as: tube sizes, thread types, body styles)

Wide range of tube diameters, thread formats, and construction styles to match global pneumatic system requirements.

Options include:
• Tube outer diameters: small to large (commonly 3 mm to 16 mm)
• Thread types: G, R, NPT, and metric threads
• Materials: polymer, nickel-plated brass, stainless steel

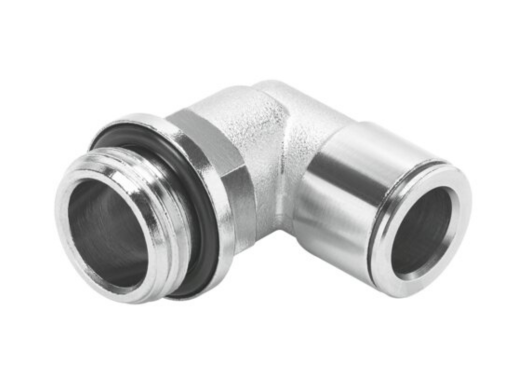

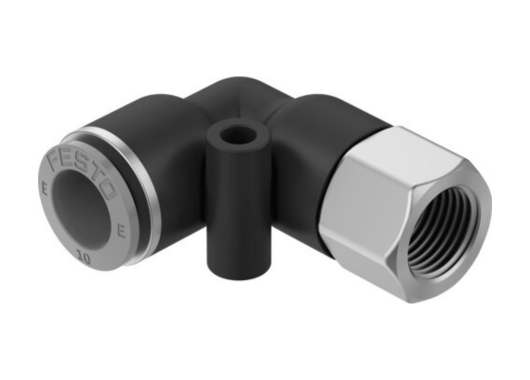

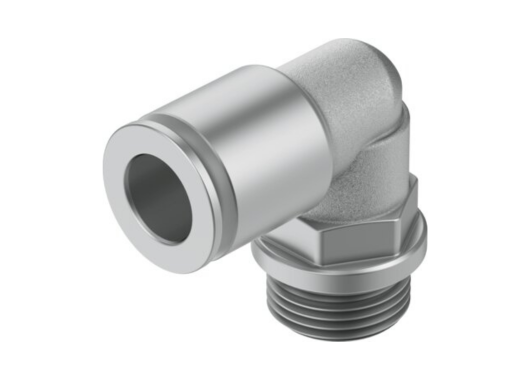

• Shapes: straight, elbow 90°, swivel elbow, tee, Y, cross
• Additional features:
– Speed controllers
– Check valves
– Bulkhead/through-wall fittings
– Anti-rotation and compact bodies

These options allow precise optimization of flow, installation space, and connection strength depending on the application.

⭐ Important: Broad tube and thread compatibility ensures seamless integration into global pneumatic systems and machinery.

Intrinsic Synchronism

Internal sealing elements and gripping mechanisms maintain synchronized and uniform clamping force across the tube surface.

Swivel and rotating fittings maintain smooth movement without compromising sealing integrity.

Ensures reliable connection stability, consistent pressure maintenance, and long-term operational performance.

Operational Advantages

• Leak-free tube connections ensuring stable system pressure
• Quick and easy installation for reduced maintenance time
• Highly durable materials suited for vibration and harsh conditions
• Wide compatibility with Festo tubing, cylinders, valves, and manifolds
• Low internal flow resistance enabling efficient air delivery

Applications: Packaging systems, pneumatic control cabinets, automated machines, robotics, conveyor systems, pick-and-place units, process automation, and general industrial environments.
