Pneumatic Conduits

Festo Pneumatic Conduits

Festo pneumatic conduits provide a robust protective shell for pneumatic tubing and electrical cables in machine and installation environments. These conduits support reliable system operation by shielding internal lines from mechanical stress, chemical exposure, and environmental wear.

The conduits are designed for protection, flexibility, and system compatibility. They are suitable for use in a wide variety of industrial settings — equipment frames, cable trays, machine tools, conveyors, and automated systems — offering long service life and minimal maintenance overhead.

⭐ Important: These conduits deliver strong protection for pneumatic lines and cables, high chemical and oil resistance, and excellent flexibility — making them a key component of reliable industrial automation installations.

Design & Functionality

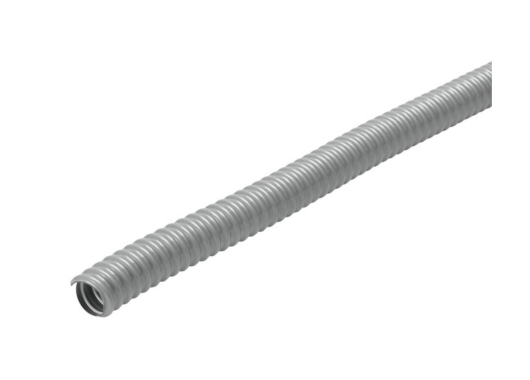

The pneumatic conduit acts as a flexible protective jacket around tubing and cables, absorbing external influences such as abrasion, impact, moisture or stray contaminants. Depending on design variant, the conduit may consist of materials like PVC combined with spring steel or other resilient compounds to maintain shape, bending radius and protective integrity.

Total Crossed Beams

(Applied to the functional coverage of conduit families)
Festo’s conduit solutions are available in multiple series covering a full range of cross-section sizes, bending radii, material choices and accessory fittings. This ensures full operational capability regardless of machine layout, installation orientation or cable/tube bundle size.

Beam Pitch Options

(Translated as: inner diameter sizes, wall thickness variants, accessory fittings)

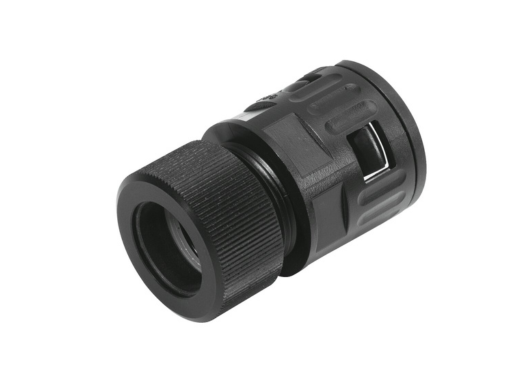

A wide selection of bore/outer diameter sizes to accommodate single or multiple tubes/cables. Optional accessories include lock nuts, fittings, and adapters to integrate with machine panels or junction boxes. Typical features include:
• Multiple inner diameters to bundle various cable/tube sizes
• Flexible wall material, sometimes with spring steel reinforcement for shape retention
• High chemical, oil and abrasion resistance for harsh environments
• Accessories for panel mounting or bulkhead installation

⭐ Important: The broad selection of conduit sizes and accessory options ensures optimal protection and integration for nearly any pneumatic or cable-bundling requirement.

Intrinsic Synchronism

The conduit system is engineered to maintain its protective performance over the complete length of the installation — from dynamic movements (chains, arms) to static installations. Its compatibility with fitting systems ensures proper sealing, stable mechanical alignment and consistent protection of contained tubing/cabling.

Operational Advantages

• Comprehensive protection for pneumatic tubes and cables from external damage and chemical exposure
• Flexible installation thanks to bendable conduit materials and accessories
• Quick integration thanks to matching fittings and lock-nuts for machine panels
• Reduced maintenance through durable design and minimal wear on protected lines
• Global-ready solution with standardized accessories and cross-compatible with Festo tubing/fittings systems

Applications: Automated production lines, robotic arms, conveyors, machine tool systems, installation frames, cable trays, compressed-air distribution panels, and hazardous environment machine housings.
