MS Series – Shut-off Valves & Soft-Start/Dump Valves

Festo MS Series – Shut-off Valves & Soft-Start/Dump Valves

The Festo MS Series is engineered to deliver safe, efficient, and controlled airflow management within compressed-air preparation systems. These valves provide essential safety functions such as gradual pressure ramp-up (soft-start), rapid exhaust during emergency stops, and positive shut-off for maintenance tasks.

Built on Festo’s modular MS platform, these valves integrate seamlessly with filters, regulators, dryers, and safety components—creating a fully customizable air-preparation system with consistent performance and easy installation.

⭐ Important: The MS Series ensures controlled pressurization, safe exhaust, and reliable shutdown—critical for protecting equipment, personnel, and downstream pneumatic components.

Design & Functionality

MS Series shut-off valves allow the system’s compressed air line to be isolated for safe servicing, while soft-start/dump valves gradually increase pressure during startup before fully opening the main flow path. In the event of an emergency stop or power loss, the dump valve exhausts system air rapidly and safely.

The MS platform supports both manual shut-off valves and electrically/pneumatically actuated soft-start/dump valves, enabling flexibility for standard or safety-integrated machine designs.

Variants include:

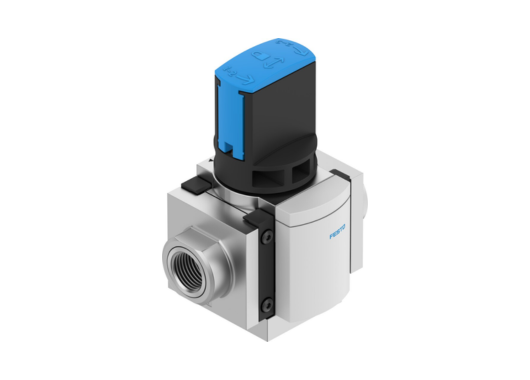

• Manual shut-off valves with padlocking capabilities
• Soft-start valves for controlled pressure ramp-up
• Soft-start/dump valves for start-up and emergency exhaust

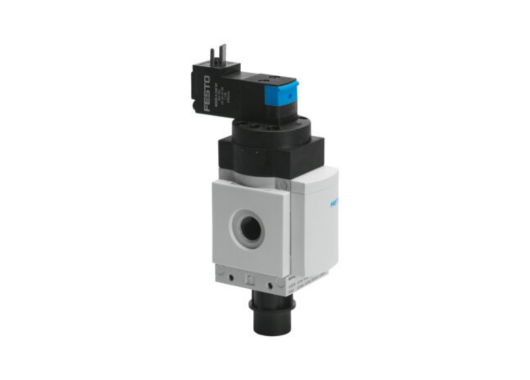

• Electrically or pneumatically actuated safety exhaust valves

All MS-Series valves are optimized for high flow, service life, and modular integration.

⭐ Important: The integrated modular design allows these valves to connect directly with other MS units without additional piping or brackets.

Total Crossed Beams

(Applied to the functional coverage of MS-Series valve types)

Comprehensive functionality across the full range of air-preparation safety needs.

Ensures full operational capability for initial startup, controlled pressurization, emergency discharge, and machine isolation.

Designed to maintain stable airflow, reliable sealing, and consistent performance under industrial load conditions.

Beam Pitch Options

(Translated as: flow variants, operating modes, construction options)

The MS Series provides multiple configuration and performance options, including:

• Different nominal flow capacities based on MS size (MS4, MS6, MS9)
• Operating modes: manual shut-off, pneumatic actuation, electrical actuation
• Integrated pressure build-up control for soft-start functions
• High-capacity dump valves for rapid depressurization
• Monitoring port options for safety circuits
• Lockable handles or actuators for maintenance safety

Optional versions include:

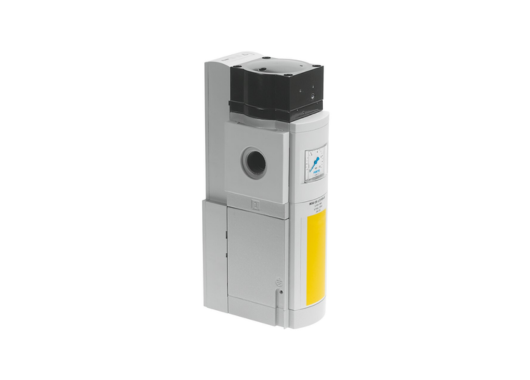

• Safety-certified exhaust valves
• Variants compliant with machine safety categories
• Special seals/materials for demanding environments

⭐ Important: Multiple MS sizes and configurations allow optimal airflow, pressure management, and safety control for small, medium, or large pneumatic systems.

Intrinsic Synchronism

Internal valve mechanisms and pilot stages ensure synchronized opening sequences, consistent pressure build-up, and smooth switching without sudden pressure spikes.

Soft-start functionality ensures the system reaches operating pressure gradually, preventing damage to actuators and downstream components.

Ensures stable and predictable airflow dynamics, improving system performance and machine reliability.

Operational Advantages

• Controlled pressure ramp-up for safe machine startup
• Rapid pressure release for emergency stops and fault handling
• Secure system isolation for service and maintenance
• Modular compatibility with all MS Series air-preparation units
• Long service life with low internal leakage and robust sealing
• Suitable for high-flow industrial pneumatic systems

Applications: General automation, machine safety circuits, packaging, robotics, handling technology, pneumatic panels, maintenance stations, and process automation.
