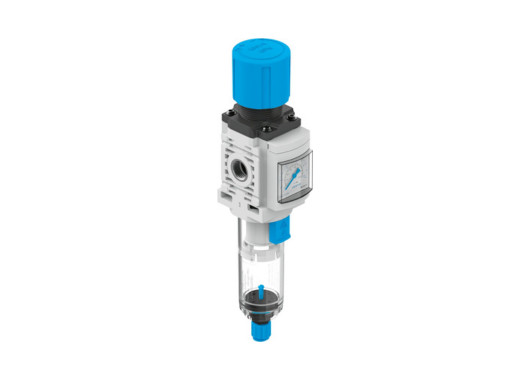

MS Basic Series – Filter Regulators

Festo MS Basic Series – Filter Regulators

The Festo MS Basic Series filter regulators are designed to provide clean, controlled, and consistent compressed air for pneumatic systems. By integrating filtration and pressure regulation into a single device, they simplify air preparation, reduce installation space, and improve system reliability.

These filter regulators remove solid particles, water, and impurities from compressed air while simultaneously maintaining a stable outlet pressure, ensuring optimal performance of downstream valves, cylinders, and sensitive pneumatic components.

⭐ Important: The MS Basic Series offers dependable air quality control, precise pressure stability, and flexible modular integration — making it a core component in industrial air preparation systems.

Design & Functionality

MS Basic filter regulators operate by passing incoming compressed air through a filtration stage that removes contaminants, followed by a regulating mechanism that maintains a constant outlet pressure regardless of upstream fluctuations.

Festo offers multiple variants with different filtration grades, drain types, and pressure regulation ranges, enabling the unit to be tailored to general-purpose or high-demand pneumatic environments.

The design allows quick filter element replacement, easy adjustment, and seamless integration with the MS series air preparation modules.

⭐ Important: Combining filtration and pressure regulation in one unit reduces maintenance, saves installation space, and ensures consistently clean air supply.

Total Crossed Beams

(Applied to the functional coverage of filter regulator variants)

Full air preparation coverage across multiple MS Basic configurations.

Ensures optimal air quality regardless of system size, environmental conditions, or downstream component sensitivity.

Designed to provide stable output pressure and filtration efficiency even under variable loads.

Beam Pitch Options

(Translated as: filtration levels, pressure ranges, body sizes)

Wide range of filtering elements, pressure regulation ranges, and housing sizes to match system requirements.

Available configuration choices include:
• Filtration grades typically around 5 µm or additional grades depending on variant
• Manual, semi-auto, or fully automatic condensate drain
• Multiple pressure regulation ranges for different operating needs
• Transparent bowl guard options for visual inspection
• Optional lockable adjustment knob for safety and tamper resistance

This enables the filter regulator to be optimized for:
• High-dust or moisture-rich environments
• Precision-controlled pneumatic circuits
• Compact machine designs
• Long-cycle, low-maintenance applications

⭐ Important: Multiple bowl, drain, and pressure options allow precise customization for nearly any industrial compressed-air system.

Intrinsic Synchronism

The filter and regulator stages work in a synchronized internal flow path to maintain smooth airflow, minimal pressure drop, and consistent filtration performance.

High-quality internal components ensure even pressure response with reduced hysteresis.

Optional modular accessories maintain alignment and compatibility when combined with other MS series units.

Operational Advantages

• Stable outlet pressure for consistent actuator and valve performance
• Effective removal of particulates and moisture from compressed air
• Compact design combining two functions into one unit
• Modular compatibility with other MS series air preparation components
• Low maintenance, easy filter replacement, and long service life

Applications: Packaging systems, pick-and-place units, conveyors, machine tools, assembly machinery, general pneumatic air preparation.
