Mechanically & Hand-Operated Pneumatic Valves

Festo Mechanically & Hand-Operated Pneumatic Valves

Festo’s mechanically and hand-operated pneumatic valves provide direct, simple, and highly reliable control of airflow within pneumatic circuits—without the need for electrical or pilot actuation. These valves are ideal for environments where manual intervention, mechanical triggering, or fail-safe operation is required.

Available in a variety of switching configurations including 3/2-way and 5/2-way variants, these valves give operators dependable, tactile control for starting, stopping, or redirecting air supply in industrial systems.

⭐ Important: Manual and mechanical actuation ensures immediate response, zero electrical dependency, and high reliability in demanding industrial workflows.

Design & Functionality

These valves function by mechanically shifting an internal spool or poppet using levers, push buttons, plungers, cams, or roller actuators. The design is simple yet robust, offering long service life even under harsh conditions.

Festo offers a broad selection of operator types including:
• Pushbutton actuated valves
• Toggle and lever-actuated valves
• Knob-operated valves

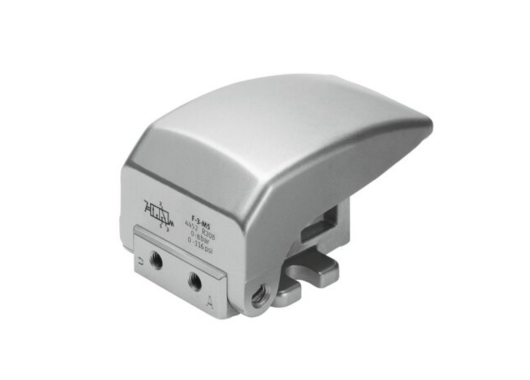

• Foot-pedal valves
• Roller and plunger-based mechanically operated valves
• Detented and momentary-return versions

Built for stability and durability, the valves maintain consistent performance with minimal wear, making them suitable for both standalone operation and integration into machine control panels.

⭐ Important: Mechanical actuation provides predictable performance even in environments where electrical or pilot actuation is impractical.

Total Crossed Beams

(Applied to the functional coverage of mechanical valve types)

Full mechanical control range provided through multiple valve families, accommodating every type of manual or machine-triggered actuation requirement.

These valves ensure complete operational coverage regardless of operator style, switching function, or application environment.

Their internal mechanisms are designed to maintain consistent switching performance and stable airflow during repeated manual or mechanical actuation cycles.

Beam Pitch Options

(Translated as: operator types, port sizes, switching modes)

A wide range of operator options, port sizes, and switching modes allows the valve to be optimized for specific use cases.

Operator and configuration options include:
• Momentary or detented switching
• 3/2-way normally closed or normally open designs
• 5/2-way spool valves for double-acting cylinder control

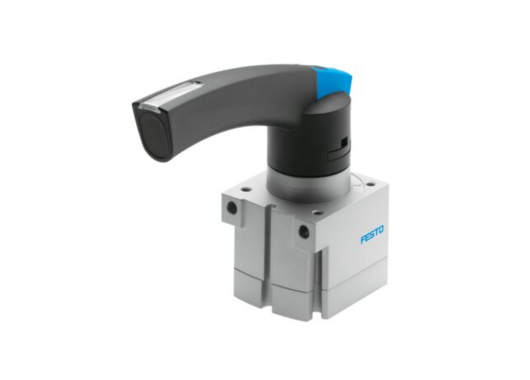

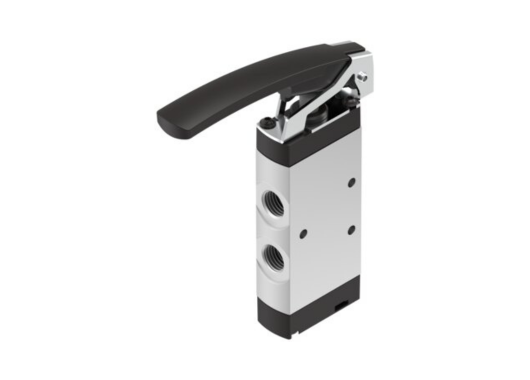

• Lever types such as toggle, palm button, selector switch, or rotary knob

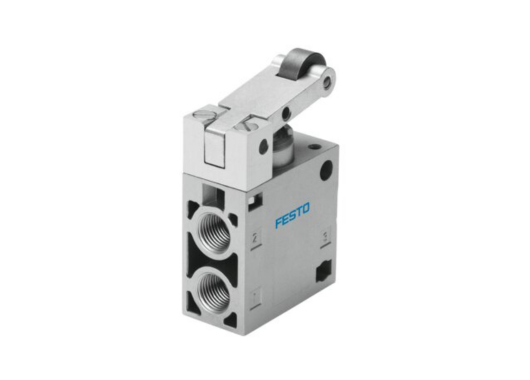

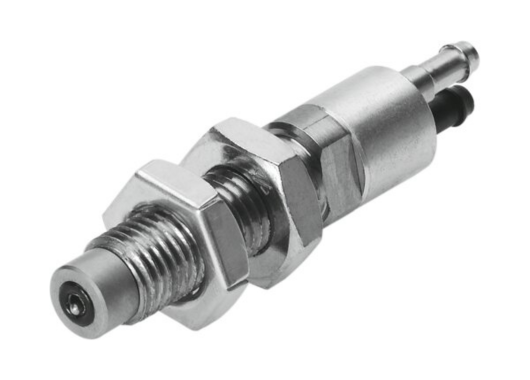

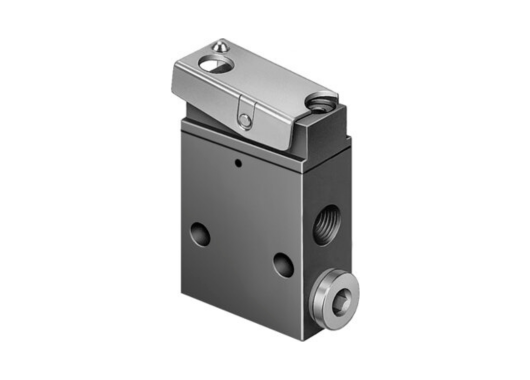

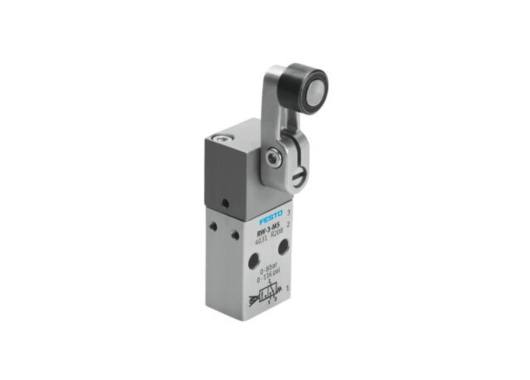

• Mechanical triggers like roller levers, plungers, or cam followers

Additional configuration choices:
• Various body materials depending on durability requirements
• Compact or high-flow versions
• Panel mount or in-line installation

⭐ Important: Wide operator variety ensures optimal usability—whether for manual operator stations, machine-triggered functions, or safety applications.

Intrinsic Synchronism

Internal spool or poppet mechanisms are engineered for smooth, synchronized switching with minimal friction and consistent airflow.

Mechanical operator designs—such as levers, plungers, or foot actuators—maintain accurate travel movement and reliable switching even under repeated manual use.

Ensures dependable, straightforward operation with excellent tactile feedback for the user.

Operational Advantages

• No electrical supply needed—ideal for simple or fail-safe systems
• Immediate tactile response with precise manual control
• High durability and long operating life
• Suitable for harsh or hazardous environments
• Wide range of operator and mounting options
• Low maintenance due to simple mechanical design

Applications: Manual control panels, maintenance stations, clamping units, emergency venting functions, conveyor equipment, machine override controls, and basic pneumatic actuation.
