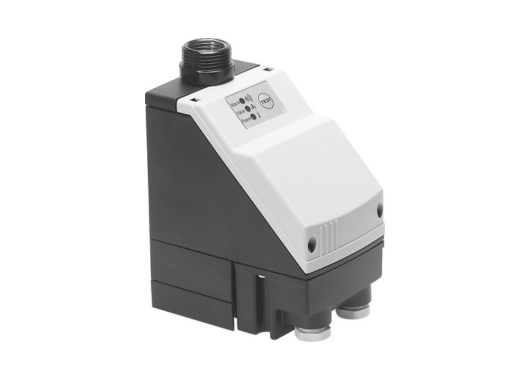

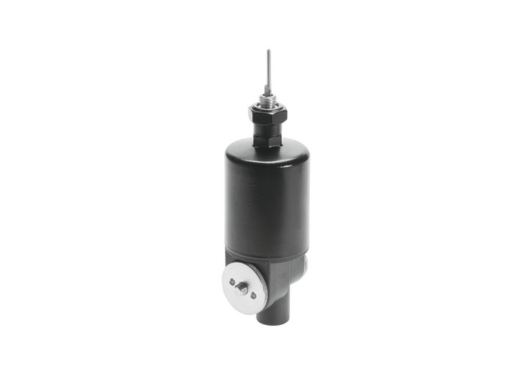

Individual Condensate Drain Devices

Festo Individual Condensate Drain Devices

Festo’s individual condensate drain devices are engineered to ensure clean, dry, and stable compressed air quality, offering dependable removal of accumulated water and contaminants from air preparation units, filters, and compressed air networks. These standalone drain devices help maintain system integrity, prevent corrosion, and extend the service life of pneumatic components.

Designed for continuous, automatic, and maintenance-efficient operation, these condensate drains are suitable for system upgrades, replacements, or integration into new pneumatic installations.

⭐ Important: Automatic condensate removal ensures stable pneumatic performance, reduces component wear, and eliminates manual draining downtime.

Design & Functionality

Individual condensate drains operate by sensing the presence of accumulated water inside air preparation units and discharging it efficiently without interrupting air supply. Depending on the variant, they may work via float-controlled, electronic level-controlled, or time-controlled mechanisms.

Festo offers multiple condensate drain types, including:
• Automatic float drains
• Electronic condensate drains
• Timer-controlled drains
• High-capacity drains for demanding air systems
• Manual safety drains for maintenance points

These devices are built to support reliable moisture removal, consistent flow conditions, and long-term system efficiency.

⭐ Important: The combination of automatic sensing and robust construction delivers maintenance-free, long-life operation in industrial air systems.

Total Crossed Beams

(Applied to the functional coverage of condensate drain types)

Wide functional coverage achieved through multiple drain mechanisms, ensuring full operation regardless of condensate load, air pressure levels, or installation points.

Guarantees complete draining capability in filters, separators, dryers, and compressed air lines.

Maintains stable system performance even during variable humidity, temperature fluctuations, or high-duty air consumption.

Beam Pitch Options

(Translated as: capacity ranges, drain mechanisms, installation choices)

Festo provides several drain options to match required performance:
• Float-operated drains for passive, pressure-dependent draining
• Electronic level-sensing drains for precision-controlled discharge
• Timer-based drains for predictable fixed-interval draining
• High-capacity variants for heavy industrial or multi-line pneumatic systems

Additional customizable features include:
• Drain port sizes suited for various filter bowl diameters
• Compact or large-format designs for different installation spaces
• Versions designed for oil-water mixture handling
• Low-temperature tolerant models for cold environments

These options allow the device to be optimized for flow rate, condensate volume, system duty cycle, and environmental conditions.

⭐ Important: Multiple drain mechanisms and capacities ensure ideal moisture management for small, medium, and large-scale compressed air systems.

Intrinsic Synchronism

Internal float, sensor, or timing controls ensure synchronized, automatic condensate discharge without requiring operator intervention.

Stable internal mechanisms maintain consistent drainage performance under varying system pressures and flow rates.

Supports precise system behavior, improving long-term pneumatic reliability and reducing air contamination risks.

Operational Advantages

• Automatic and efficient condensate removal
• Protects downstream pneumatic equipment from corrosion and contamination
• Reduces maintenance intervals and manual draining requirements
• Enhances air quality and system reliability
• Compatible with a wide range of Festo filters and air preparation units

Applications: General factory automation, compressed air networks, air preparation stations, production lines, packaging equipment, and any system requiring clean, dry compressed air.
