HPRT FC53-Lc

HPRT FC53-Lc

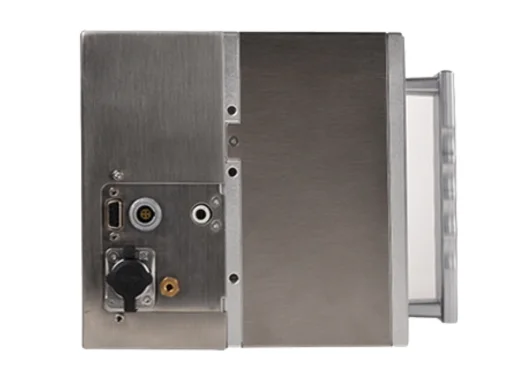

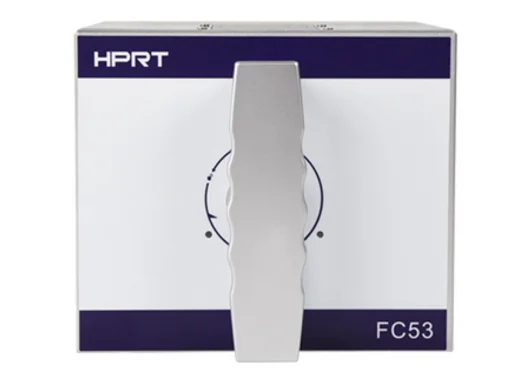

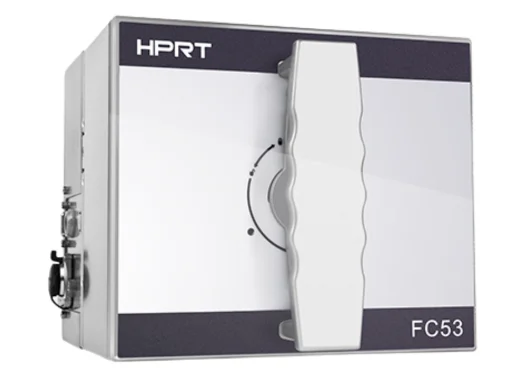

The HPRT FC53-Lc is an industrial-grade Thermal Transfer Overprinting (TTO) solution designed for flexible packaging printing. It features a robust all-metal structure and offers a high resolution of 300DPI. With a maximum print speed of 600mm and a large print area of 53mm x 100mm, the FC53-Lc is highly reliable, cost-saving, and optimized for effective printing on various flexible film materials.
Category: TTO (Thermal Transfer Over printers)
Brand: HPRT

Description

The HPRT FC53-Lc is a high-performance Thermal Transfer Overprinter (TTO) from the FC53 series, engineered for precise, high-quality coding on flexible packaging materials. It delivers exceptional clarity for variable data such as dates, barcodes, and text—ideal for food, pharmaceutical, and consumer goods packaging lines.

Key Features and Benefits:

  • High Printing Quality & Speed: Delivers crisp, legible prints at 300 DPI (12 dots/mm) and operates at speeds from 40 to 600 mm/s, ensuring productivity without compromising quality.
  • Large Print Area: The FC53-Lc model offers a 53 mm × 100 mm print area, enabling multiple-line prints or larger barcodes.
  • Advanced Ribbon Saving: Features multiple intelligent ribbon-saving modes — interlaced, radial, multi-signal, digital ribbon saving, and ribbon back — minimizing consumable waste with a minimal ribbon interval of only 0.5 mm.
  • Broad Material Compatibility: Prints flawlessly on various flexible materials, including PVDC, PET, PE, NY, CPP, OPP, and VMPET, making it suitable for a wide range of packaging applications.
  • Durable and Smart Design: Built with an all-metal frame, powered by a 32-bit RSIC processor, and equipped with 8 MB Flash / 16 MB Dynamic Memory for reliable, efficient operation. A real-time clock with over 3 years of battery life ensures accurate time-based coding.

Technical Specification



Specification

Detail

ModelFC53-Lc
StructureAll-metal structure
Printing MethodThermal Transfer Printing
Resolution300 dpi (12 dots/mm)
Printing Speed40 – 600 mm/s
Printing Width53 mm
Print Area53 mm × 100 mm
Processor32-bit RSIC processor
Memory8 MB Flash (min), 16 MB Dynamic (min)
Ribbon Capacity1" mandrel, max length 1100 meters
Ribbon Width20 mm (0.79") to 55 mm (2.17")
Air SupplyMax. 6 bar / 90 psi
ConnectivityUSB (2.0 device/host), Serial Port (D-SUB 9-pin), Ethernet (RJ-45)
SoftwareHPRT Format Designer
Print Head Warranty6 months or 50 KM
Machine WeightPrinter: < 8 kg; Controller: < 5 kg
