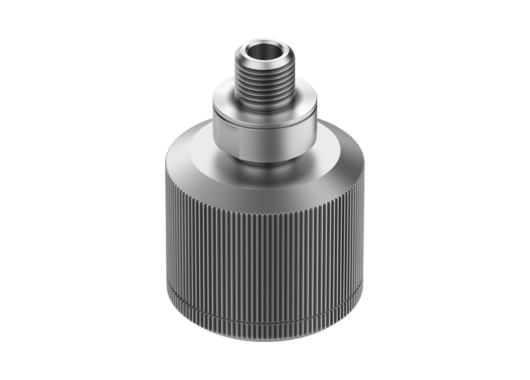

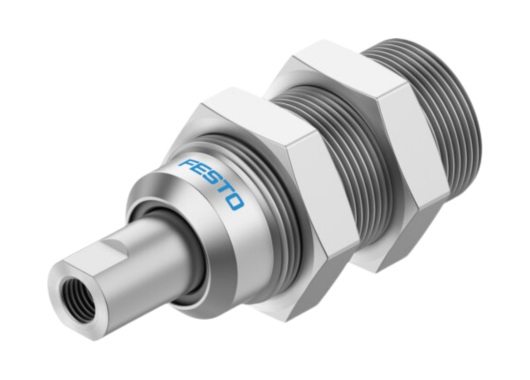

Compensating Components for Vacuum

Festo Compensating Components for Vacuum

The compensating components by Festo are precision accessories designed for use in vacuum-based handling systems. They provide mechanical compensation for height variations, workpiece tolerance differences or angular misalignment between suction cup holders and workpieces. By doing so, they contribute to reliable process stability, gentle handling and extended system longevity.

These components are particularly relevant in industries such as packaging, electronics, battery manufacturing or any automation where the vacuum gripper needs to adapt to varying heights or surface tolerances of the workpiece.

⭐ Important: These components enable tolerance compensation, angle correction and stable vacuum gripping, ensuring consistent handling even under variable conditions.

Design & Functionality

• Compensating components include height-compensators (e.g., spring-based travel of 5 mm, 10 mm, 20 mm) and angle-compensators (e.g., ±15° swivel) that sit between suction cup holder and workpiece.
• Their main functional benefits:
  • Compensation for height differences: they allow the suction cup to follow workpiece height variations, protecting the vacuum system from excessive shock.
  • Tolerance accommodation: they absorb small offset or angled surfaces, ensuring the suction cup maintains full contact and vacuum seal.
  • Robust construction: made from aluminium, POM, high-alloy stainless steel, with seals such as NBR; rated for operating pressure from –0.95 bar up to +8 bar, and ambient temperatures –10 °C to +60 °C.
• These compensators integrate seamlessly into vacuum handling systems, reduce gripping errors, extend suction-cup life and enhance cycle reliability.

⭐ Important: By absorbing mechanical misalignment and height deviation, these components improve gripping consistency, reduce system wear, and elevate automation uptime.

Total Crossed Beams

(Adapted as full coverage of compensation motion rather than optical beams)

• The compensating component provides full mechanical compensation over the work-piece interface, covering the full range of height or angular deviation.
• This results in uniform suction-cup engagement, fewer mis-picks and less downtime due to suction losses.

Beam Pitch Options

(Translated as compensation travel and angle variants)

• Height-compensators with travel values: 5 mm, 10 mm, 20 mm for different tolerance spans.
• Vacuum port & suction-cup threads: options such as M5, G1/8, G1/4; suction cup mount threads: M5, G1/8, G1/4.
• These variants allow the user to choose the compensator that best matches the work-piece height variation and suction-cup geometry.

⭐ Important: The variety of travel lengths and connections ensures compatibility with many vacuum gripper designs and work-piece tolerance levels.

Intrinsic Synchronism

• The compensator’s internal spring or swivel mechanism is integrated into the vacuum holder assembly and functions automatically without external actuation or controls.
• This ensures instant mechanical adaptation on each pick-cycle, maintaining consistent contact and performance.

Operational Advantages

• Tolerance absorption for height and angular deviations, leading to consistent vacuum gripping.
• Reduced mechanical stress on suction cups and gripper systems, extending component life.
• Simple integration, requiring no additional sensors or control logic.
• Applications: Pick-and-place systems, vacuum end-effectors, packaging machines, battery handling, electronics placement—any environment where work-pieces vary in thickness or orientation and need reliable vacuum grip.
