Festo Classic – Pneumatic Cylinders

Festo Classic Pneumatic Cylinders represent the industry-standard solution for linear actuation, offering proven durability, stable performance, and compatibility with a wide range of industrial environments. These cylinders are engineered for applications requiring high operational reliability, easy installation, and long service life.

With a simple, rugged design and broad availability across diameters, strokes, and mounting styles, the Classic series remains one of the most trusted actuator lines for OEMs and automation engineers. Their smooth motion profile, reinforced piston construction, and strong resistance to wear make them suitable for continuous-duty operations across packaging, material handling, assembly lines, and general factory automation.

⭐ Important: This series is widely recognized for its exceptional reliability, long lifespan, and high availability, making it a preferred choice for machine builders worldwide.

Design & Functionality

• Built using high-strength aluminum or steel components depending on model variant.
• Optimized piston seal technology ensures leak-free operation and consistent motion.
• Available with both single-acting and double-acting configurations.
• Optional cushioning or adjustable cushioning for smooth stopping at end-of-stroke.
• Compatible with magnetic piston variants for sensor-based position detection.
• Wide choice of mounting accessories enables easy integration into machine assemblies.

⭐ Important: Adjustable cushioning provides smooth deceleration, protecting the machine and extending cylinder life.

Total Crossed Beams (Applied Conceptually – Motion Control Uniformity)

• The piston and guide components support uniform force distribution across the cylinder stroke.
• Ensures stable, repeatable linear motion under varying loads.
• Reduces vibrations and improves precision during travel.

Beam Pitch Options (Interpreted as Size & Stroke Variants)

• Diameter options typically range from Ø8 mm to Ø100+ mm depending on model type.
• Stroke lengths available from short strokes for compact automation to long strokes for extended travel.
• Multiple end-cap and rod-end options increase configuration flexibility.
• Variants include:

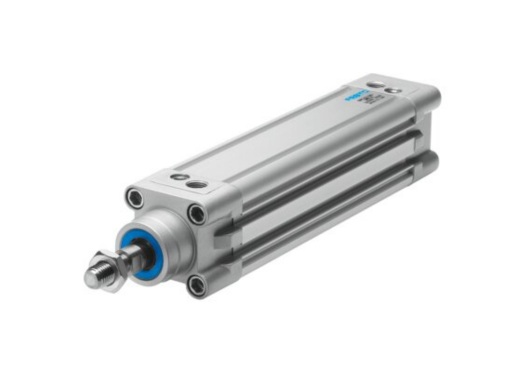

  • Standard cylinders

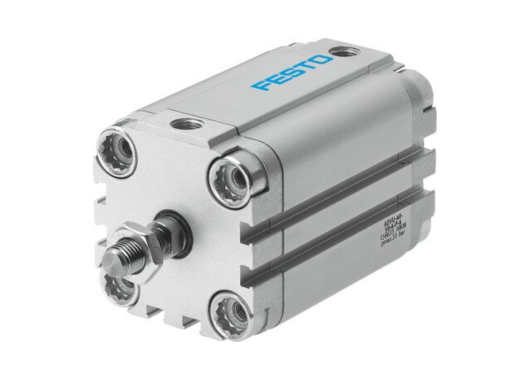

  • Compact cylinders
  • Short-stroke cylinders
  • Special-purpose heavy-load cylinders

⭐ Important: This extensive range of variants ensures perfect compatibility with diverse automation requirements.

Intrinsic Synchronism

• Internal guiding and sealing technology ensures synchronized movement throughout the stroke.
• Maintains stable linear force output with minimal friction.
• Enables precise and repeatable positioning for automated cycles.

Operational Advantages

• Long-lasting design suitable for high-cycle applications
• Low maintenance due to reliable sealing technology
• Quiet, smooth operation with built-in cushioning
• Simple installation with standardized mounting interfaces
• Wide application range: packaging, assembly, robotics, conveyors, material transport, industrial machinery
