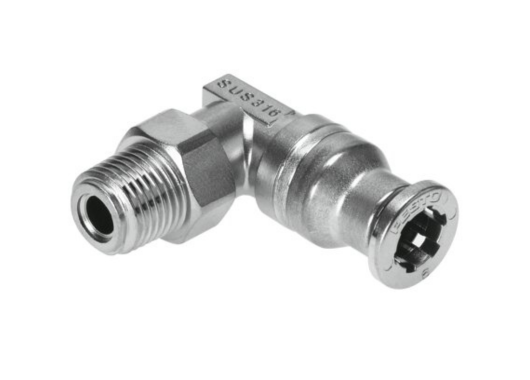

Classic Pneumatic Connection Technology

Festo Classic Pneumatic Connection Technology

Festo Classic pneumatic connection components are engineered to deliver secure, durable, and efficient air distribution across industrial automation systems. Built to withstand demanding environments, these fittings and tubes ensure leak-free operation and reliable connection integrity throughout the entire compressed-air network.

The Classic series includes a wide variety of fittings, connectors, couplings, plastic tubes, and metallic elements that support standard pneumatic applications with high reliability and long operational life.

⭐ Important: The Classic series offers universal compatibility, robust construction, and dependable sealing performance — making it ideal for all general pneumatic connection requirements.

Design & Functionality

Classic pneumatic connectors and tubes are designed to create efficient and secure pathways for compressed air flow. Their precision-engineered sealing and tightening systems ensure long-term durability and easy installation.

The range includes:
• Push-in fittings
• Threaded fittings
• Y, T, and L-shaped connectors
• Couplings and plugs
• Pneumatic tubing in multiple diameters
• Metal and polymer body variants

These components support dependable air distribution while maintaining consistent flow characteristics and mechanical stability.

⭐ Important: The Classic system ensures long-lasting sealing performance, even under vibration, high pressure, and frequent load cycles.

Total Crossed Beams

(Applied to the functional coverage of connection types)

Full performance coverage across multiple fitting shapes, tube sizes, and connector materials.

Ensures complete compatibility with any pneumatic layout—whether branching, distributing, splitting, or extending air circuits throughout a machine.

Engineered for consistent airflow, secure mechanical retention, and stable operation in diverse installation orientations.

Beam Pitch Options

(Translated as: tubing sizes, connection formats, material variants)

Available in a wide range of tubing diameters, thread types, and connection interfaces, ensuring perfect integration into any pneumatic system.

Options include:
• Tube outside diameters from small signal lines to large air-supply lines
• Thread types (metric, G-thread, R-thread, NPT depending on variant)
• Material variants such as brass, nickel-plated metal, polymer, and stainless steel
• Multiple shapes: straight, elbow, tee, cross, Y-splitters, reducers
• Tubes in PA, PU, and PE materials for flexibility, durability, or chemical resistance

These choices allow the system to be tailored for compact routing, high-pressure conditions, harsh environments, or flexible installation paths.

⭐ Important: The broad variety of fittings and tubing ensures optimal flow distribution and connection reliability for any pneumatic architecture.

Intrinsic Synchronism

Precision-fit sealing and connection surfaces provide synchronized airflow continuity, minimizing turbulence and pressure loss.

Compression systems and push-in mechanisms ensure smooth and secure assembly, reducing the risk of leaks and misalignment.

Supports stable pneumatic performance and repeatability across the entire connected system.

Operational Advantages

• Secure, leak-free connection technology
• Multiple material options for durability in harsh conditions
• High mechanical stability and tightness
• Easy installation, maintenance, and replacement
• Compatible with standard pneumatic tubing and connectors
• Reliable over long service periods due to optimized sealing geometries

Applications: Industrial automation, machine building, packaging equipment, assembly lines, general pneumatic distribution, robotics, process equipment, and instrumentation.
